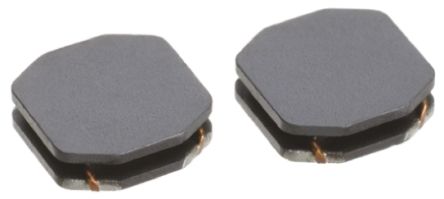

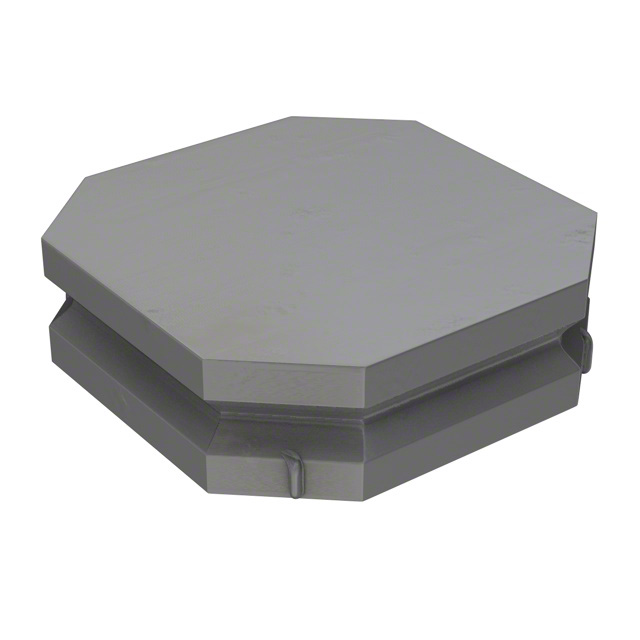

TDK VLS4012ET-1R5N 表面贴装功率电感器, VLS-E系列, 1.5 µH, ± 30%, 屏蔽, 0.072 ohm, 2.45 A
固定器
得捷:
FIXED IND 1.5UH 2.1A 72 MOHM SMD
立创商城:
1.5uH ±30% 2.1A 72mΩ
欧时:
TDK VLS-E 系列 屏蔽 铁氧体芯材 1.5 μH 绕线贴片电感器 VLS4012ET-1R5N, ±30%容差, 2.45A Idc
e络盟:
TDK VLS4012ET-1R5N 表面贴装功率电感器, VLS-E系列, 1.5 µH, ± 30%, 屏蔽, 0.072 ohm, 2.45 A
艾睿:
This power VLS4012ET-1R5N surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 2.45Typ A with a maximum resistance of 72m Ohm. It has an inductance of 1.5u H. Its test frequency is 1M Hz. This product is 4.1 mm long, 1.2 mm tall and 4.1 mm deep. This device is made with wirewound technology.
Chip1Stop:
Ind Power Shielded Wirewound 1.5uH 30% 1MHz 2.45A 1515 T/R
Verical:
Inductor Power Shielded Wirewound 1.5uH 30% 1MHz Ferrite 2.45A 0.072Ohm DCR 1515 T/R
Win Source:
FIXED IND 1.5UH 2.1A 72 MOHM SMD
额定电流 2.1 A
容差 ±30 %
电感 1.5 µH
产品系列 VLS-E
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤72 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
精度 ±30 %
电阻DC Max 0.072 Ω
安装方式 Surface Mount
封装 1515
长度 4 mm
宽度 4.1 mm
高度 1.2 mm
封装 1515
工作温度 -40℃ ~ 105℃
产品生命周期 Not For New Designs
包装方式 Tape & Reel TR
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLS4012ET-1R5N TDK 东电化 | 当前型号 | 当前型号 |
SRN4012T-1R5M 伯恩斯 | 功能相似 | VLS4012ET-1R5N和SRN4012T-1R5M的区别 |
