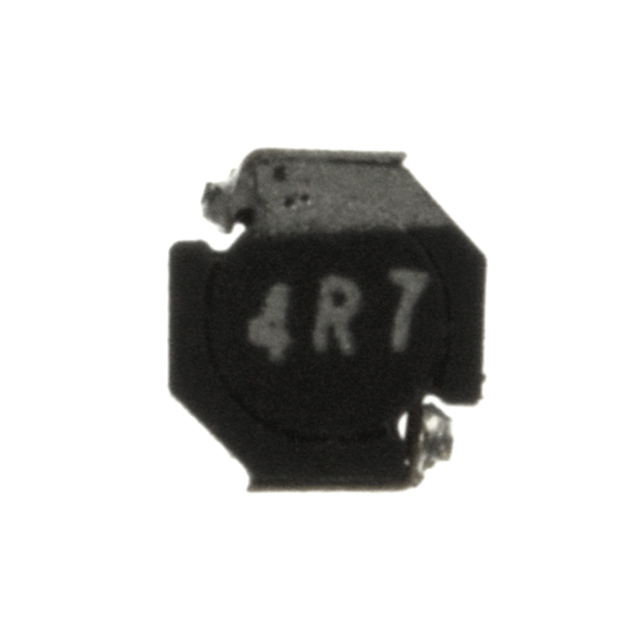

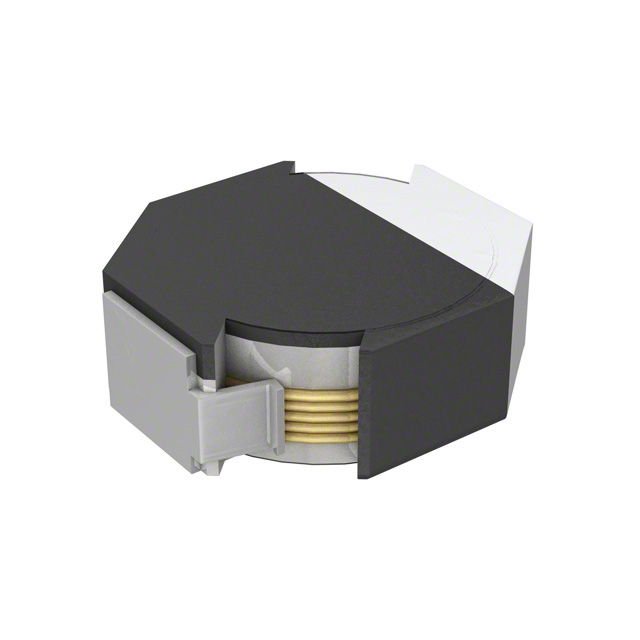

TDK VLF3010AT-4R7MR70 表面贴装功率电感器, VLF系列, 4.7 µH, ± 20%, 屏蔽, 0.28 ohm, 820 mA
Q值Q Value| \---|--- 值Inductance| 4.7uH 误差Tolerance| ±20% 额定电流Current Rating| 700mA 饱和电流Current - Saturation| DC电阻DCRDC Resistance DCR| 0.24Ω/Ohm Description & Applications| FEATURES • These are compact inductors for power line measuring at L2.6×W2.8mm and 1mm in height, considerably smaller compared to inductors with comparable characteristics. • They feature low coil resistance, making them suitable for large currents e.g. 0.7A at 0.24Ω. • They offer an excellent shielding effect. • The products do not contain lead and support lead-free soldering. • This product does not contain regulated substances that are slated to be included in RoHS. APPLICATIONS For mobile phones, hard disk drives and DSCs. 描述与应用| 特点 •这些都是紧凑型电感器的电源线测量L2.6×W2.8mm的和1mm的高度,相比相当小 电感可比特色。 它们的特点是低线圈的电阻,使它们适合于大电流(例如0.7A,0.24Ω)。 他们提供了一个很好的屏蔽效果。 •该产品不含有铅和支持无铅焊接。 •本产品不含有受管制物质, 预计被列入限制有害物质指令(RoHS)规范。 应用 对于手机,硬盘驱动器和数码相机。
额定电流 700 mA
容差 ±20 %
电感 4.7 µH
产品系列 VLF-M-CA
电阻 240 mΩ
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤280 mΩ
电阻DC Max 0.28 Ω
安装方式 Surface Mount
引脚数 2
封装 Nonstandard
长度 2.6 mm
宽度 2.8 mm
高度 1 mm
封装 Nonstandard
工作温度 -40℃ ~ 105℃
产品生命周期 Last Time Buy

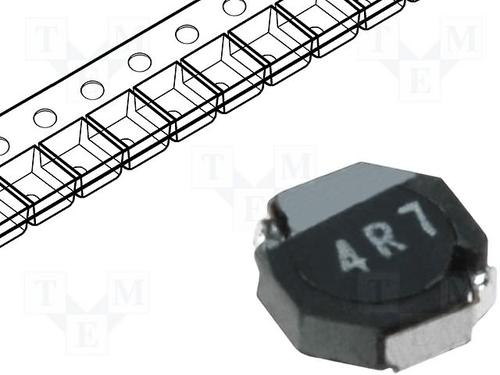

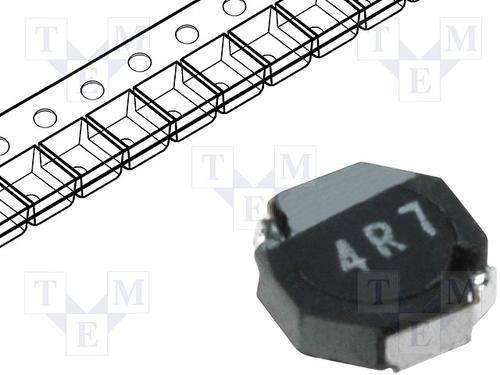

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLF3010AT-4R7MR70 TDK 东电化 | 当前型号 | 当前型号 |
VLS3012HBX-4R7M 东电化 | 功能相似 | VLF3010AT-4R7MR70和VLS3012HBX-4R7M的区别 |
