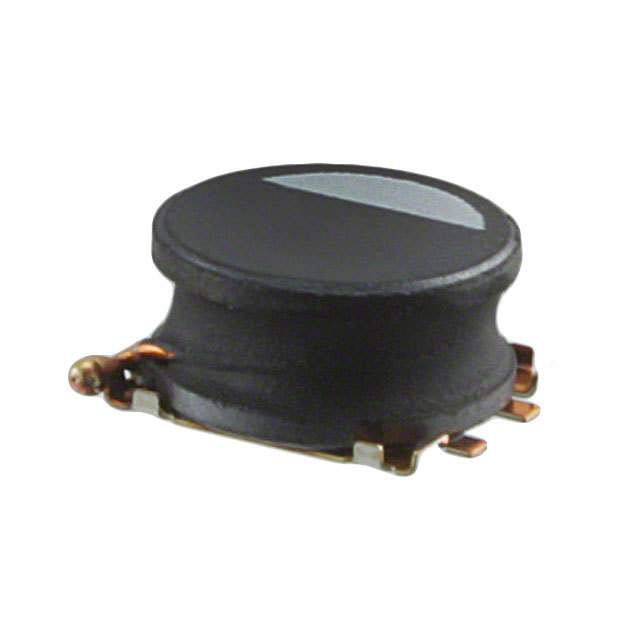

TDK VLP8040T-331M 表面贴装功率电感器, VLP系列, 330 µH, ± 20%, 屏蔽, 1.1 ohm, 700 mA
VLP8040 系列磁性屏蔽线绕扼流圈
铁氧体树脂材料屏蔽绕线元件
适用于回流焊接
应用包括薄屏电视、打印机、便携式计算机及其他便携式设备
得捷:
FIXED IND 330UH 500MA 1.1OHM SMD
欧时:
### VLP8040 系列磁性屏蔽线绕扼流圈铁氧体树脂材料屏蔽绕线元件 适用于回流焊接 应用包括薄屏电视、打印机、便携式计算机及其他便携式设备 ### TDK 非标准 SMT 电感器（扼流圈）
e络盟:
功率电感SMD, 330 µH, 700 mA, 屏蔽, 500 mA, VLP系列, 8.6mm x 8.7mm x 4mm
艾睿:
Save valuable space on a PCB with this power VLP8040T-331M surface mount inductor from TDK. This SMD inductor has an operating temperature range of -40 °C to 105 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 700mA typ with a maximum resistance of 1.1 Ohm. This product is 8.6 mm long, 4 mm tall and 8.7 mm deep. It has a tolerance of 20%. This device utilizes wirewound technology. Its test frequency is 100K Hz. It has an inductance of 330u H.
安富利:
Ind Power Shielded Wirewound 330uH 20% 100KHz 700mA Embossed Carrier T/R
富昌:
VLP 系列 330 uH ±20 % 500 mA 1.1 Ohm 表面贴装 非屏蔽 线绕 电感
Verical:
Inductor Power Shielded Wirewound 330uH 20% 100KHz Ferrite 0.7A 1.1Ohm DCR T/R
Newark:
# TDK VLP8040T-331M Surface Mount Power Inductor, VLP Series, 330 H, 20%, Shielded, 1.1 ohm, 700 mA
额定电流 500 mA
容差 ±20 %
电感 330 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC） ≤1.1 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 1.1 Ω
安装方式 Surface Mount
封装 8.6mm x 8.7mm x 4mm
长度 8.6 mm
宽度 8 mm
高度 4 mm
封装 8.6mm x 8.7mm x 4mm
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, 计算机和计算机周边, 便携式器材, 电源管理, Portable Devices, Consumer Electronics, Industrial, Power Management, 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
