VLCF5024T-330MR50-2

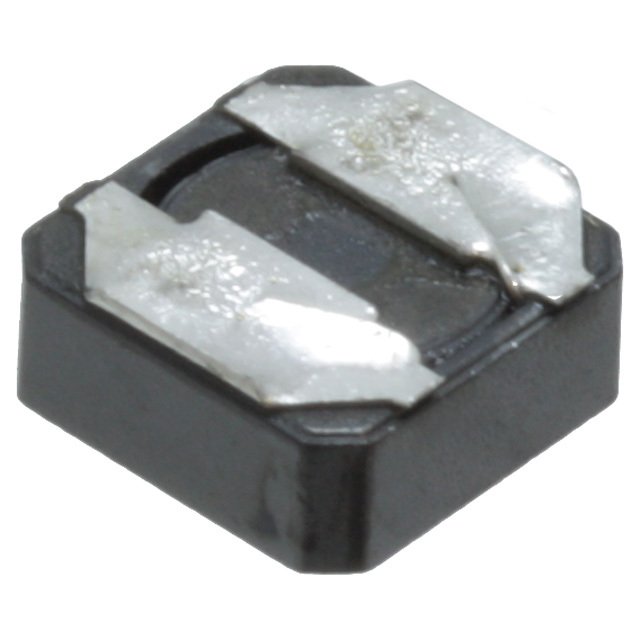

TDK  VLCF5024T-330MR50-2  表面贴装功率电感器, VLCF系列, 33 µH, ± 20%, 屏蔽, 0.275 ohm, 1.24 A

* Magnetic shield type wound inductor for power circuits

.

Low-profile product

.

Magnetic shield construction

.

Power source inductor for mobile devices such as HDDs, DVCs & DSCs

.

LCDs, other DC to DC converters

得捷:
FIXED IND 33UH 500MA 275MOHM SMD

立创商城:
33uH ±20% 500mA 275mΩ

贸泽:
Fixed Inductors 33uH 0.5A 239mOhms 20%

e络盟:
功率电感SMD, 33 µH, 1.24 A, 屏蔽, 500 mA, VLCF系列, 5mm x 5mm x 2.4mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power VLCF5024T-330MR50-2 surface mount inductor from TDK to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 1.24Typ A with a maximum resistance of 275m Ohm. It has an inductance of 33u H. Its test frequency is 100K Hz. It has a tolerance of 20%. This device is made with wirewound technology. This product is 5.2 mm long, 2.4 mm tall and 5.2 mm deep.
