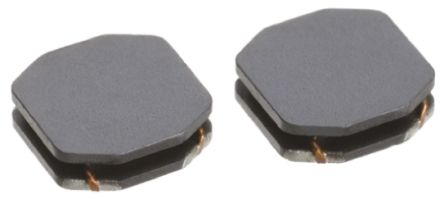

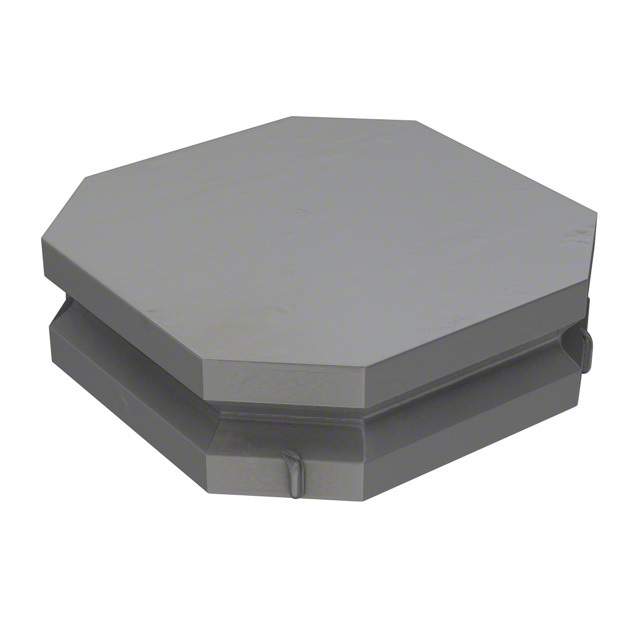

TDK VLS4012ET-150M 表面贴装功率电感器, VLS-E系列, 15 µH, ± 20%, 屏蔽, 0.372 ohm, 1.05 A
固定器
立创商城:
15uH ±20% 700mA 372mΩ
得捷:
FIXED IND 15UH 700MA 372MOHM SMD
欧时:
TDK VLS-E 系列 屏蔽 铁氧体芯材 15 μH 绕线贴片电感器 VLS4012ET-150M, ±20%容差, 1.05A Idc
e络盟:
TDK VLS4012ET-150M 表面贴装功率电感器, VLS-E系列, 15 µH, ± 20%, 屏蔽, 0.372 ohm, 1.05 A
艾睿:
This power VLS4012ET-150M surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 4.1 mm long, 1.2 mm tall and 4.1 mm deep. This SMD inductor has a maximum DC current of 1.05Typ A with a maximum resistance of 372m Ohm. Its test frequency is 1M Hz. This device utilizes wirewound technology. It has an inductance of 15u H. It has a tolerance of 20%.
安富利:
Ind Power Shielded Wirewound 15uH 20% 1MHz 1.05A T/R
Chip1Stop:
Ind Power Shielded Wirewound 15uH 20% 1MHz 1.05A 1515 T/R
Win Source:
FIXED IND 15UH 700MA 372 MOHM
额定电流 700 mA
容差 ±20 %
电感 15 µH
产品系列 VLS-E
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤372 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.372 Ω
安装方式 Surface Mount
封装 1515
长度 4 mm
宽度 4.1 mm
高度 1.2 mm
封装 1515
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
