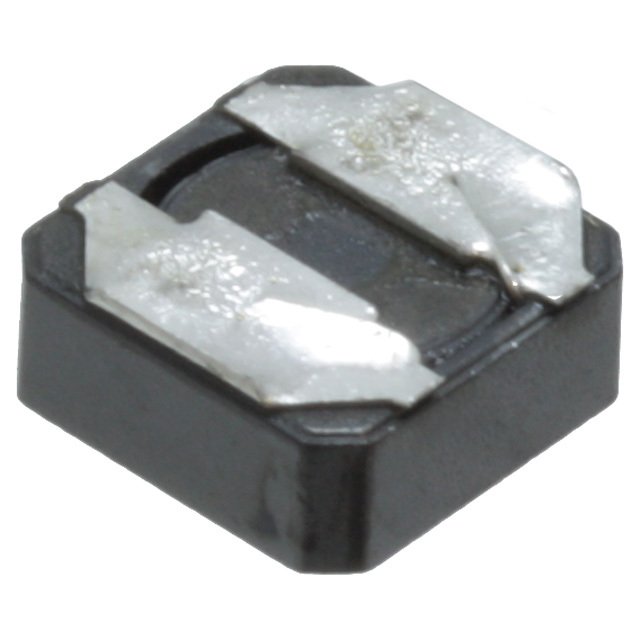

TDK VLCF5024T-4R7N1R3-2 表面贴装功率电感器, VLCF系列, 4.7 µH, ± 30%, 屏蔽, 0.044 ohm, 3.11 A
4.7 µH 屏蔽 鼓芯,绕线式 器 1.33 A 44 毫欧最大 非标准
立创商城:
4.7uH ±30% 1.33A 44mΩ
得捷:
FIXED IND 4.7UH 1.33A 44MOHM SMD
e络盟:
功率电感SMD, 4.7 µH, 3.11 A, 屏蔽, 1.33 A, VLCF系列, 5mm x 5mm x 2.4mm
艾睿:
This power VLCF5024T-4R7N1R3-2 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 3.11Typ A with a maximum resistance of 44m Ohm. This product is 5.2 mm long, 2.4 mm tall and 5.2 mm deep. Its test frequency is 100K Hz. It has an inductance of 4.7u H.
安富利:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz 1.33A Blister T/R
额定电流 1.33 A
容差 ±30 %
电感 4.7 µH
产品系列 VLCF
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤44 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.044 Ω
安装方式 Surface Mount

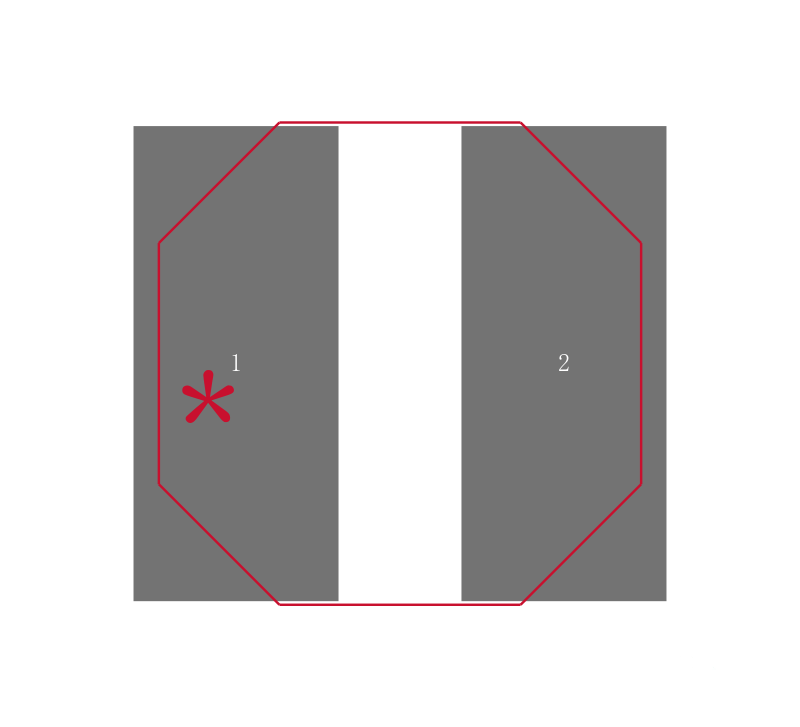

封装 2020
高度 2.4 mm
封装 2020
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
