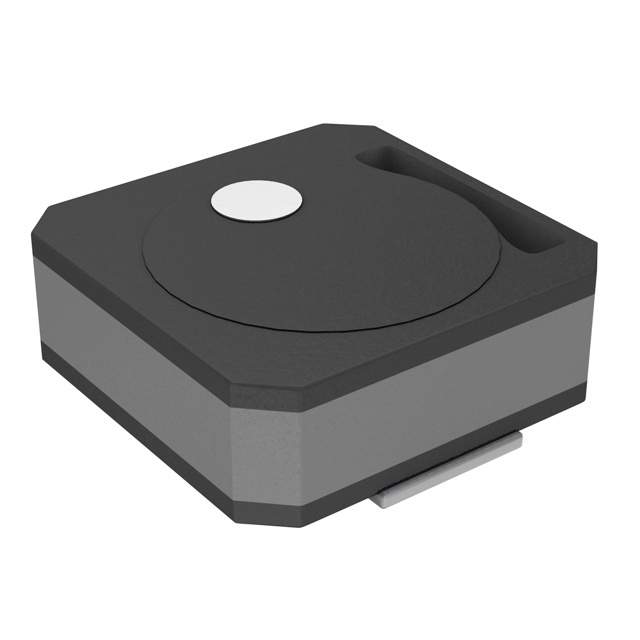

TDK VLCF5020T-3R3N2R0-3 表面贴装功率电感器, VLCF系列, 3.3 µH, ± 30%, 屏蔽, 0.065 ohm, 2.76 A
固定器
得捷:
FIXED IND 3.3UH 2.02A 65MOHM SMD
立创商城:
3.3uH ±30% 2.02A 55mΩ
e络盟:
功率电感SMD, 绕线铁氧体, 3.3 µH, 2.76 A, 屏蔽, 2.02 A, VLCF Series, 5mm x 5mm x 2mm
艾睿:
An ideal space-saving electronic component is this power VLCF5020T-3R3N2R0-3 surface mount inductor from TDK. This SMD inductor has an operating temperature range of -40 °C to 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 2.76Typ A with a maximum resistance of 65m Ohm. Its test frequency is 100K Hz. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. This device utilizes wirewound technology. It has an inductance of 3.3u H.
安富利:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 2.02A Blister T/R
Verical:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz Ferrite 2.76A 0.065Ohm DCR 2020 T/R
Newark:
# TDK VLCF5020T-3R3N2R0-3 Surface Mount Power Inductor, VLCF Series, 3.3 H, 30%, Shielded, 0.065 ohm, 2.76 A
额定电流 2.02 A
容差 ±30 %
电感 3.3 µH
产品系列 VLCF
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤65 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.065 Ω
安装方式 Surface Mount
封装 2020
长度 5 mm
宽度 5.3 mm
高度 2 mm
封装 2020
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
