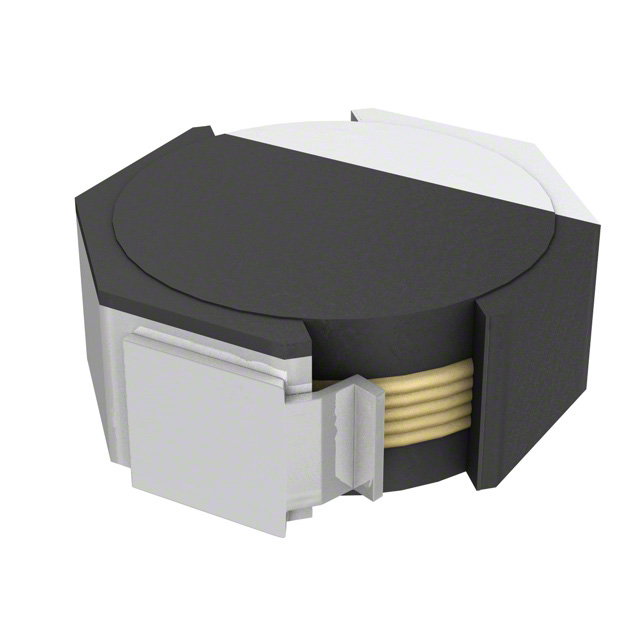

TDK VLF4012AT-3R3M1R3 表面贴装功率电感器, VLF系列, 3.3 µH, ± 20%, 屏蔽, 0.12 ohm, 1.3 A
固定器
得捷:
FIXED IND 3.3UH 1.3A 120MOHM SMD
e络盟:
功率电感SMD, 3.3 µH, 1.3 A, 屏蔽, 1.3 A, VLF系列, 3.7mm x 3.5mm x 1.2mm
艾睿:
Use this power VLF4012AT-3R3M1R3 surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 1.3Typ A with a maximum resistance of 120m Ohm. Its test frequency is 100K Hz. This device is made with wirewound technology. This product is 4 mm long, 1.2 mm tall and 3.8 mm deep. It has a tolerance of 20%. It has an inductance of 3.3u H.
安富利:
Ind Power Shielded Wirewound 3.3uH 20% 100KHz 1.3A T/R
富昌:
VLF 系列 3.3 uH ±20% 1.3 A 0.12 Ohm 屏蔽 表面贴装 线绕 功率电感
Verical:
Inductor Power Shielded Wirewound 3.3uH 20% 100KHz Ferrite 1.3A 0.12Ohm DCR T/R
MASTER:
Inductor Power Shielded Wirewound 3.3uH 20% 100KHz Ferrite 1.3A 120mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 3.3uH 20% 100KHz Ferrite 1.3A 120mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 20% 100KHz Ferrite 1.3A 120mOhm DCR T/R
Win Source:
FIXED IND 3.3UH 1.3A 120 MOHM
额定电流 1.3 A
容差 ±20 %
电感 3.3 µH
电阻 100 mΩ
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤120 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.12 Ω
安装方式 Surface Mount
引脚数 2

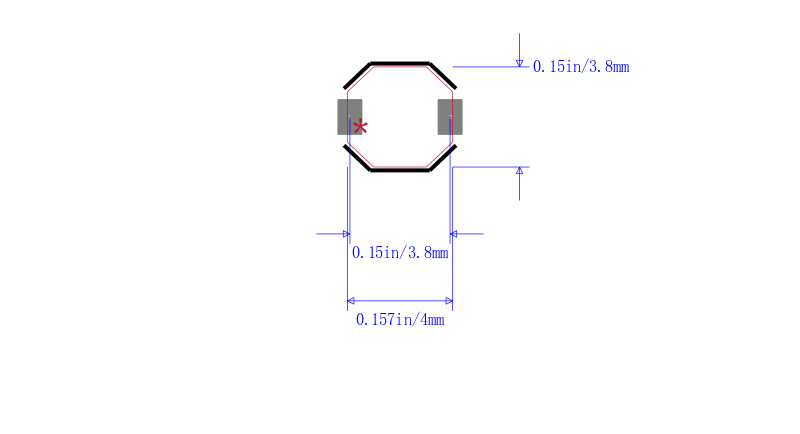

封装 Nonstandard
长度 3.5 mm
宽度 3.7 mm
高度 1.2 mm
封装 Nonstandard
工作温度 -40℃ ~ 105℃
产品生命周期 Last Time Buy
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLF4012AT-3R3M1R3 TDK 东电化 | 当前型号 | 当前型号 |
VLS3012HBX-3R3M 东电化 | 功能相似 | VLF4012AT-3R3M1R3和VLS3012HBX-3R3M的区别 |
