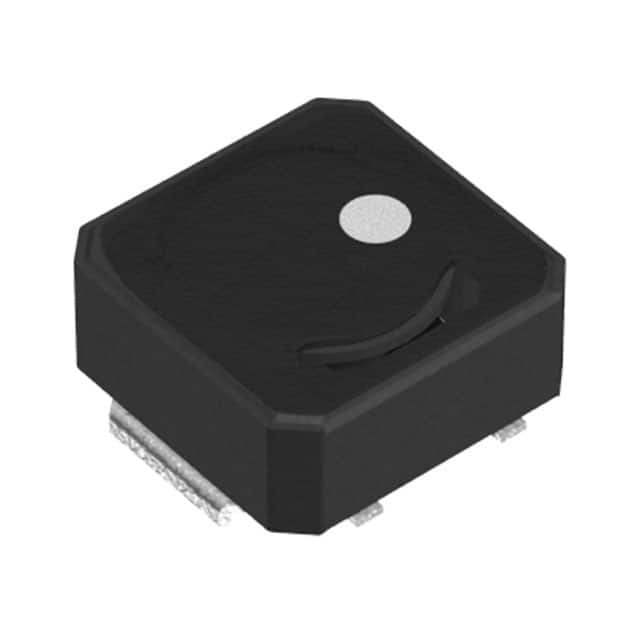

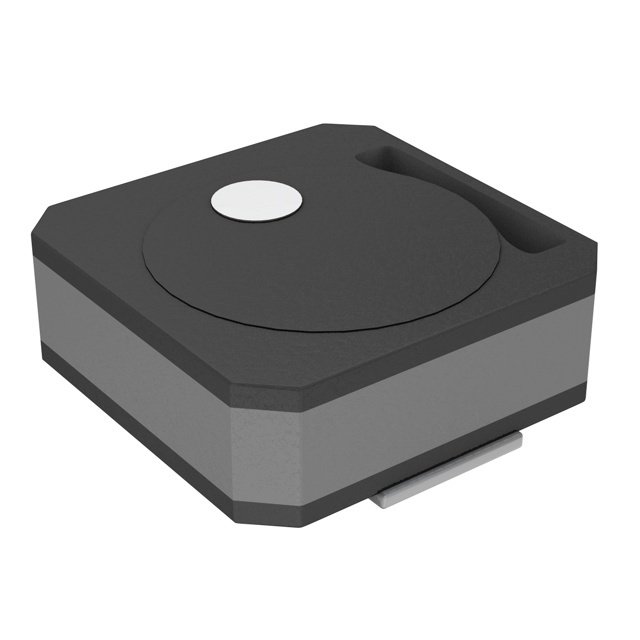

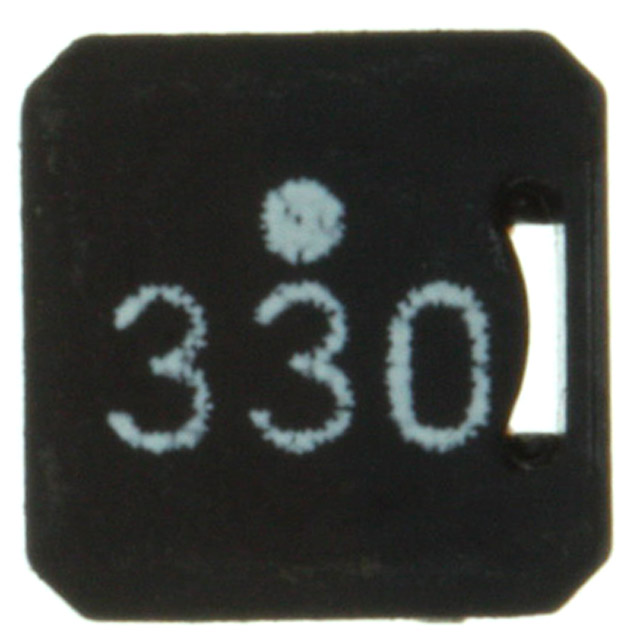

TDK VLCF5020T-330MR48 表面贴装功率电感器, VLCF系列, 33 µH, ± 20%, 绕线, 0.522 ohm, 920 mA
固定器
得捷:
FIXED IND 33UH 480MA 522MOHM SMD
欧时:
TDK VLCF 系列 屏蔽 33 μH 绕线贴片电感器 VLCF5020T-330MR48, ±20%容差, 920mA Idc, 522mΩ最大直流电阻
e络盟:
功率电感SMD, 绕线铁氧体, 33 µH, 920 mA, 屏蔽, 480 mA, VLCF Series, 5mm x 5mm x 2mm
艾睿:
This power VLCF5020T-330MR48 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 20%. This device is made with wirewound technology. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. It has an inductance of 33u H. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 920mA typ with a maximum resistance of 522m Ohm.
安富利:
Ind Power Shielded Wirewound 33uH 20% 100KHz 920mA T/R
Chip1Stop:
Ind Power Shielded Wirewound 33uH 20% 100KHz Ferrite 920mA T/R
Verical:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 0.92A 0.522Ohm DCR 2020 T/R
Newark:
# TDK VLCF5020T-330MR48 Surface Mount Power Inductor, VLCF Series, 33 µH, 920 mA, 480 mA, Wirewound, 0.522 ohm
MASTER:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 920mA 522mOhm DCR 2020 T/R
Online Components:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 920mA 522mOhm DCR 2020 T/R
Electro Sonic:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 920mA 522mOhm DCR 2020 T/R
Win Source:
FIXED IND 33UH 480MA 522 MOHM
额定电流 480 mA
容差 ±20 %
电感 33 µH
产品系列 VLCF
电阻 435 mΩ
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤522 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.522 Ω
安装方式 Surface Mount
引脚数 2

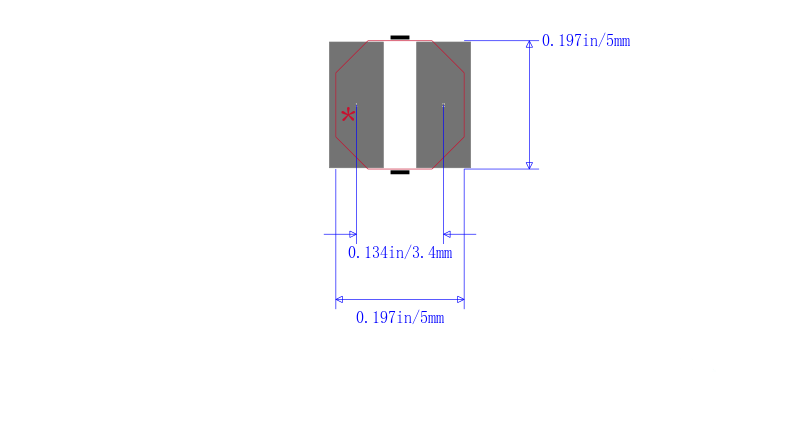

封装 2020

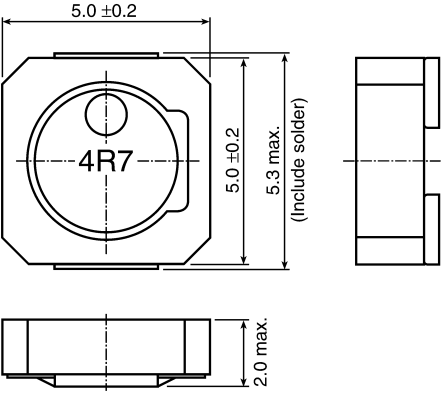

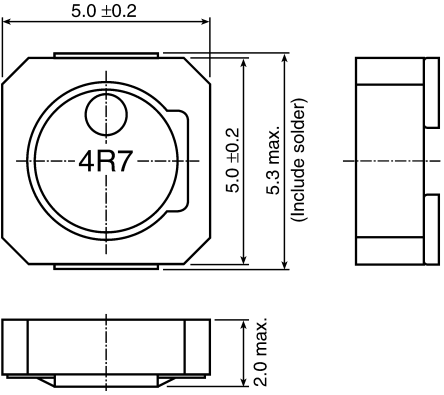

长度 5.0 mm
宽度 5 mm
高度 2 mm
封装 2020
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLCF5020T-330MR48 TDK 东电化 | 当前型号 | 当前型号 |
SRN5020-330M 伯恩斯 | 功能相似 | VLCF5020T-330MR48和SRN5020-330M的区别 |
