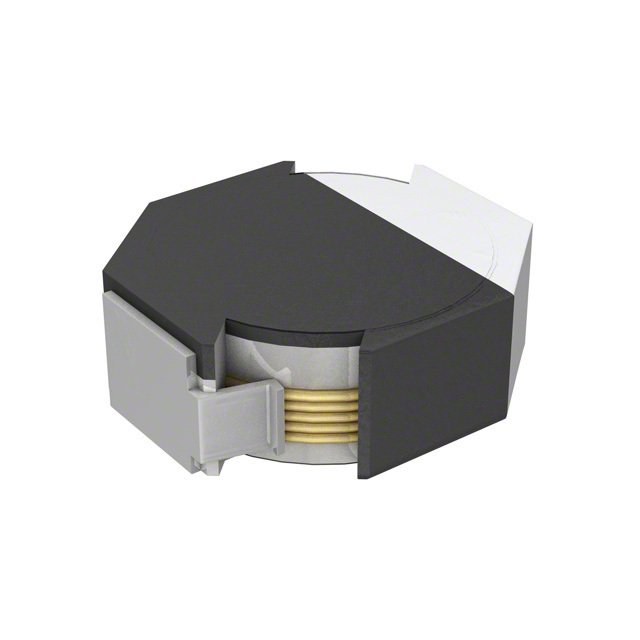

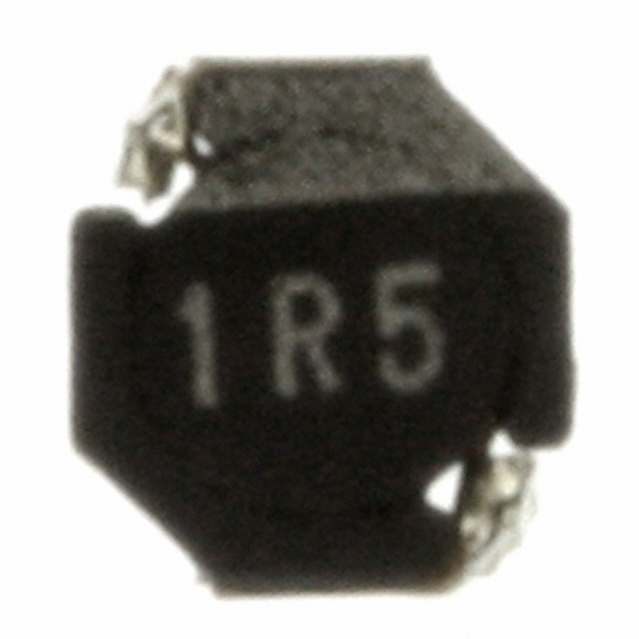

TDK VLF3010AT-1R5N1R2 表面贴装功率电感器, VLF系列, 1.5 µH, ± 30%, 屏蔽, 0.078 ohm, 1.5 A
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 1.5A 78mOhm DCR T/R
得捷:
FIXED IND 1.5UH 1.2A 78 MOHM SMD
贸泽:
Fixed Inductors 1.5uH 1.2A 2.6x2.1x1.0mm
e络盟:
功率电感SMD, 1.5 µH, 1.5 A, 屏蔽, 1.2 A, VLF系列, 2.8mm x 2.6mm x 1mm
艾睿:
Save valuable space on a PCB with this power VLF3010AT-1R5N1R2 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 1.5Typ A with a maximum resistance of 78m Ohm. This device is made with wirewound technology. It has an inductance of 1.5u H. Its test frequency is 100K Hz. This product is 3 mm long, 1 mm tall and 2.8 mm deep.
安富利:
Ind Power Shielded Wirewound 1.5uH 30% 100KHz 1.2A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 1.5A 78mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 1.5A 0.078Ohm DCR T/R
MASTER:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 1.5A 78mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 1.5A 78mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 1.5uH 30% 100KHz Ferrite 1.5A 78mOhm DCR T/R
Win Source:
FIXED IND 1.5UH 1.2A 78 MOHM SMD
额定电流 1.2 A
容差 ±30 %
电感 1.5 µH
产品系列 VLF-M-CA
电阻 68.0 mΩ
屏蔽 Yes
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤78 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.078 Ω
安装方式 Surface Mount
引脚数 2
封装 2.8mm x 2.6mm x 1mm
长度 2.6 mm
宽度 2.8 mm
高度 1 mm
封装 2.8mm x 2.6mm x 1mm
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLF3010AT-1R5N1R2 TDK 东电化 | 当前型号 | 当前型号 |
VLS3012HBX-1R5M 东电化 | 功能相似 | VLF3010AT-1R5N1R2和VLS3012HBX-1R5M的区别 |
