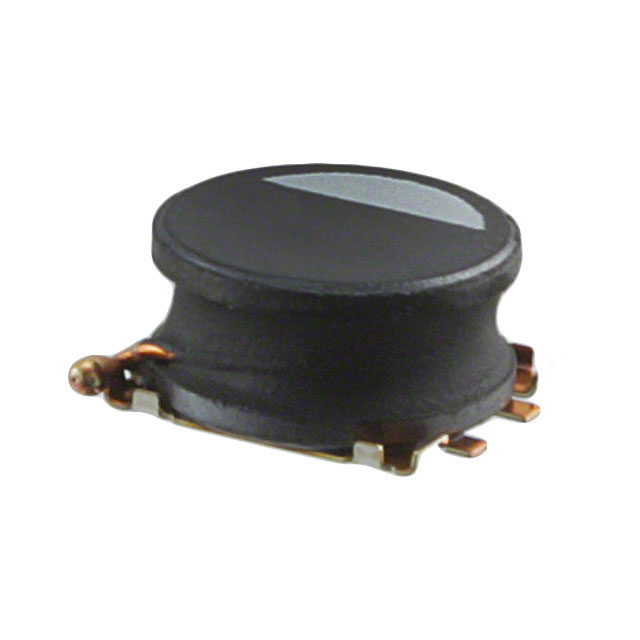

TDK VLP8040T-6R8M 表面贴装功率电感器, VLP系列, 6.8 µH, ± 20%, 屏蔽, 0.032 ohm, 4 A
固定器
得捷:
FIXED IND 6.8UH 3.6A 32 MOHM SMD
欧时:
TDK VLP 系列 屏蔽 铁氧体芯材 6.8 μH 绕线贴片电感器 VLP8040T-6R8M, ±20%容差, 3.6A Idc
e络盟:
功率电感SMD, 6.8 µH, 4 A, 屏蔽, 3.6 A, VLP系列, 8.6mm x 8.7mm x 4mm
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power VLP8040T-6R8M surface mount inductor from TDK to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 6.8u H. Its test frequency is 100K Hz. This product is 8.6 mm long, 4 mm tall and 8.7 mm deep. This SMD inductor has a maximum DC current of 4Typ A with a maximum resistance of 32m Ohm. This device is made with wirewound technology. It has a tolerance of 20%.
安富利:
Ind Power Shielded Wirewound 6.8uH 20% 100KHz 4A Embossed Carrier T/R
Chip1Stop:
Inductor Power Shielded Wirewound 6.8uH 20% 100KHz Ferrite 4A 32mOhm DCR Blister T/R
Verical:
Inductor Power Shielded Wirewound 6.8uH 20% 100KHz Ferrite 4A 32mOhm DCR Blister T/R
Newark:
# TDK VLP8040T-6R8M Surface Mount Power Inductor, VLP Series, 6.8 H, 20%, Shielded, 0.032 ohm, 4 A
Win Source:
6.8μH Shielded Wirewound Inductor 3.6A 32 mOhm Max Nonstandard
额定电流 3.6 A
容差 ±20 %
电感 6.8 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤32 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.032 Ω
安装方式 Surface Mount
封装 8.6mm x 8.7mm x 4mm
长度 8 mm
宽度 8 mm

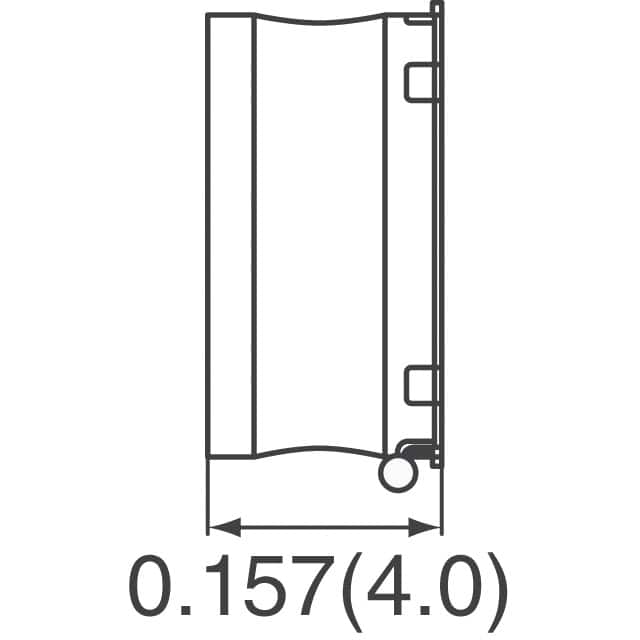

高度 4 mm
封装 8.6mm x 8.7mm x 4mm
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VLP8040T-6R8M TDK 东电化 | 当前型号 | 当前型号 |
VLS6045EX-6R8M 东电化 | 功能相似 | VLP8040T-6R8M和VLS6045EX-6R8M的区别 |
