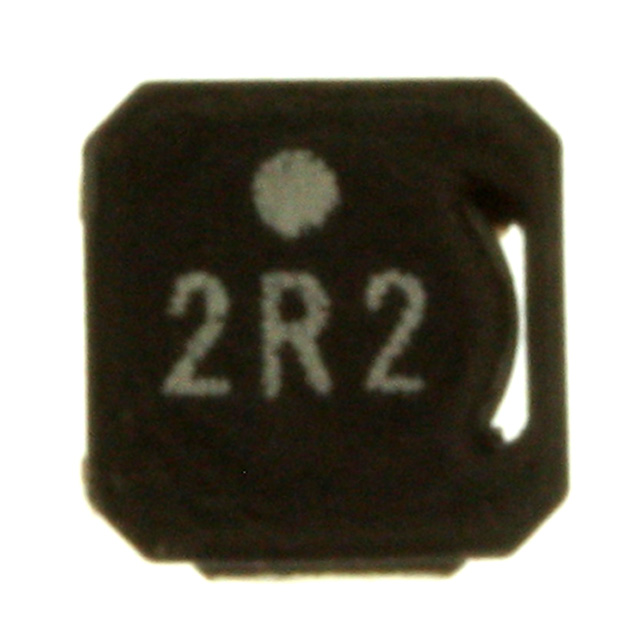

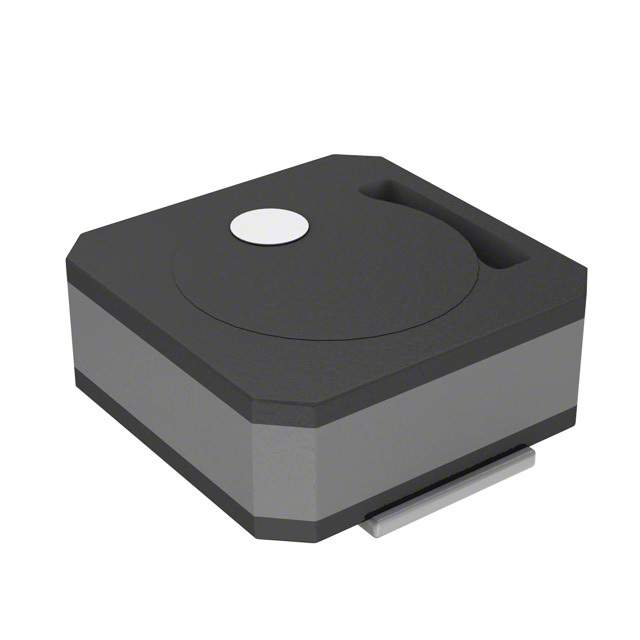

TDK VLCF4018T-2R2N1R4-2 表面贴装功率电感器, VLCF系列, 2.2 µH, ± 30%, 绕线, 0.06 ohm, 2.23 A
固定器
得捷:
FIXED IND 2.2UH 1.44A 60MOHM SMD
立创商城:
2.2uH ±30% 1.44A 79mΩ
欧时:
TDK VLCF 系列 屏蔽 2.2 μH 绕线贴片电感器 VLCF4018T-2R2N1R4-2, ±30%容差, 2.23A Idc
e络盟:
功率电感SMD, 绕线铁氧体, 2.2 µH, 2.23 A, 屏蔽, 1.44 A, VLCF Series, 4mm x 4mm x 1.8mm
艾睿:
An ideal space-saving electronic component is this power VLCF4018T-2R2N1R4-2 surface mount inductor from TDK. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 2.2u H. This SMD inductor has a maximum DC current of 2.23Typ A with a maximum resistance of 60m Ohm. This product is 4.1 mm long, 1.8 mm tall and 4.1 mm deep. This device utilizes wirewound technology. Its test frequency is 100K Hz.
安富利:
Ind Power Shielded Wirewound 2.2uH 30% 100KHz 2.23A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 2.23A 60mOhm DCR 1515 T/R
Verical:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 2.23A 0.06Ohm DCR 1515 T/R
Newark:
Power Inductor SMD, 2.2 µH, 2.23 A, 1.44 A, VLCF Series, 4.3mm x 4mm x 1.8mm, Wirewound
儒卓力:
**VLCF4020 2,2uH 1400mA 30% WWT **
MASTER:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 2.23A 60mOhm DCR 1515 T/R
Online Components:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 2.23A 60mOhm DCR 1515 T/R
Electro Sonic:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 2.23A 60mOhm DCR 1515 T/R
Win Source:
FIXED IND 2.2UH 1.44A 60 MOHM
额定电流 1.44 A
容差 ±30 %
电感 2.2 µH
产品系列 VLCF
电阻 52.0 mΩ
屏蔽 Yes
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤60 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.06 Ω
安装方式 Surface Mount
引脚数 2
封装 1515

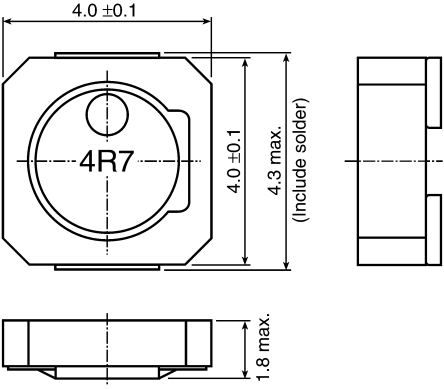

长度 4.0 mm
宽度 4.0 mm
高度 1.8 mm
封装 1515
重量 0.100 g
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
HTS代码 8504508000
