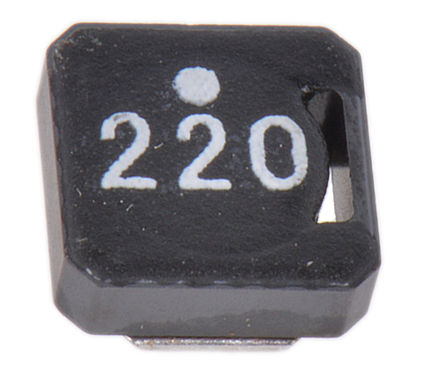

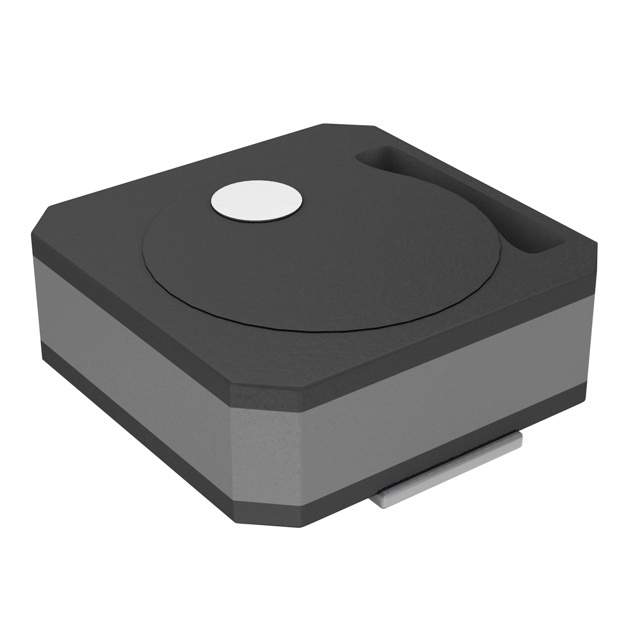

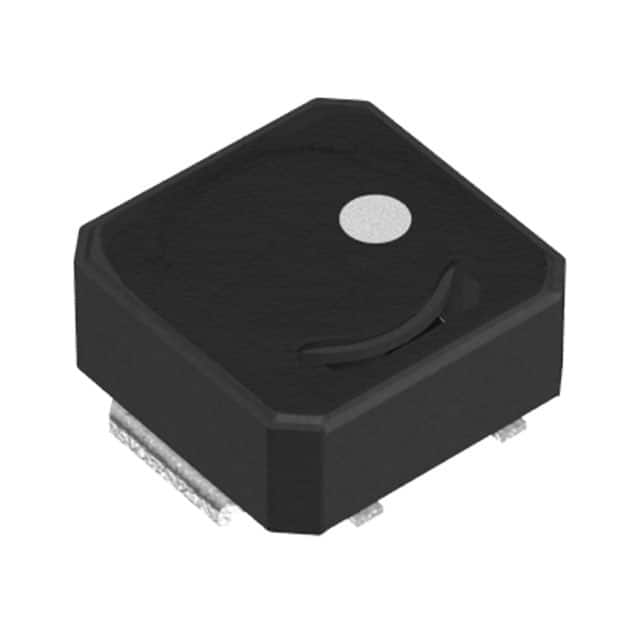

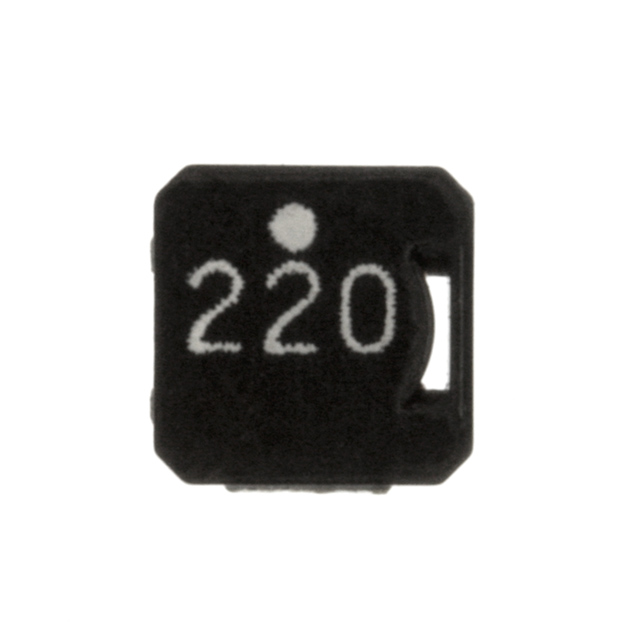

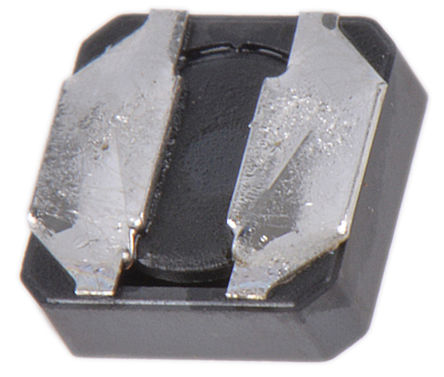

TDK VLCF5020T-220MR75-1 表面贴装功率电感器, 绕线铁氧体, VLCF Series, 22 µH, ± 20%, 屏蔽, 0.496 ohm, 1 A 新
固定器
欧时:
### VLCF5020 系列磁性屏蔽线绕扼流圈高磁屏蔽结构 通用便携式直流到直流变换器线路 测试频率 = 100 kHz ### TDK 非标准 SMT 电感器(扼流圈)
得捷:
FIXED IND 22UH 750MA 496MOHM SMD
立创商城:
22uH ±20% 750mA 496mΩ
e络盟:
功率电感SMD, 绕线铁氧体, 22 µH, 1 A, 屏蔽, 750 mA, VLCF Series, 5mm x 5mm x 2mm
艾睿:
This power VLCF5020T-220MR75-1 surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 1Typ A with a maximum resistance of 496m Ohm. It has an inductance of 22u H. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. Its test frequency is 100K Hz. It has a tolerance of 20%.
安富利:
Ind Power Shielded Wirewound 22uH 20% 100KHz 1A T/R
Chip1Stop:
Ind Power Shielded Wirewound 22uH 20% 100KHz Ferrite 1A T/R
Verical:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 1A 0.496Ohm DCR 2020 T/R
Newark:
# TDK VLCF5020T-220MR75-1 Surface Mount Power Inductor, VLCF Series, 22 µH, 1 A, 750 mA, Wirewound, 0.496 ohm
儒卓力:
**VLCF5020 22uH 750mA 20% WWT **
MASTER:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 1A 496mOhm DCR 2020 T/R
Online Components:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 1A 496mOhm DCR 2020 T/R
Electro Sonic:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 1A 496mOhm DCR 2020 T/R
额定电流 750 mA
容差 ±20 %
电感 22 µH
产品系列 VLCF
电阻 413 mΩ
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 0.496 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.496 Ω
安装方式 Surface Mount
引脚数 2
封装 2020
长度 5 mm
宽度 5 mm
高度 2 mm
封装 2020
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
