VLCF5020T-470MR40

TDK  VLCF5020T-470MR40  表面贴装功率电感器, VLCF系列, 47 µH, ± 20%, 绕线, 0.748 ohm, 770 mA

固定器

欧时:
### VLCF5020 系列磁性屏蔽线绕扼流圈高磁屏蔽结构 通用便携式直流到直流变换器线路 测试频率 = 100 kHz ### TDK 非标准 SMT 电感器（扼流圈）

得捷:
FIXED IND 47UH 400MA 748MOHM SMD

立创商城:
47uH ±20% 400mA 748mΩ

e络盟:

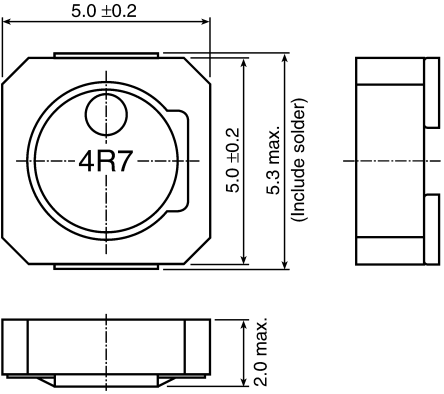

功率电感SMD, 47 µH, 770 mA, 绕线, 400 mA, VLCF系列, 5.3mm x 5mm x 2mm

艾睿:
This power VLCF5020T-470MR40 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with wirewound technology. Its test frequency is 100K Hz. It has a tolerance of 20%. It has an inductance of 47u H. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. This SMD inductor has a maximum DC current of 770mA typ with a maximum resistance of 748m Ohm.

安富利:
Ind Power Shielded Wirewound 47uH 20% 100KHz 770mA T/R

Chip1Stop:
Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 770mA 748mOhm DCR 2020 T/R

Verical:
Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.77A 0.748Ohm DCR 2020 T/R

MASTER:
Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 770mA 748mOhm DCR 2020 T/R

Online Components:
Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 770mA 748mOhm DCR 2020 T/R

Electro Sonic:
Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 770mA 748mOhm DCR 2020 T/R

Win Source:
47μH Shielded Wirewound Inductor 400mA 748 mOhm Max Nonstandard
