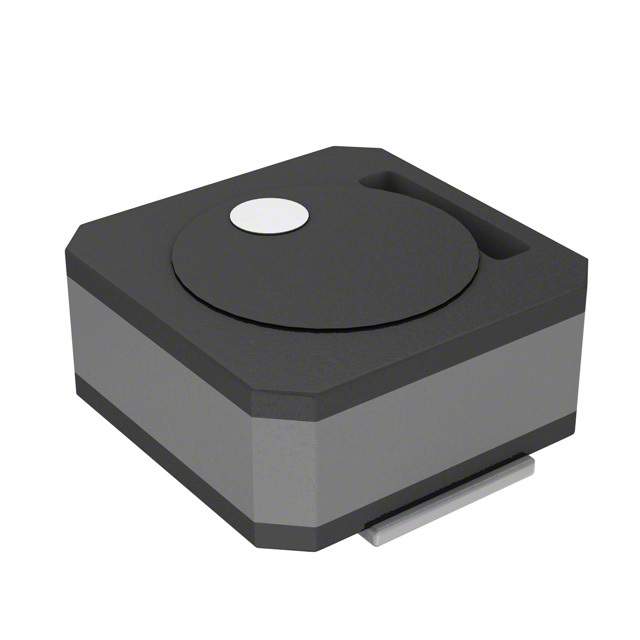

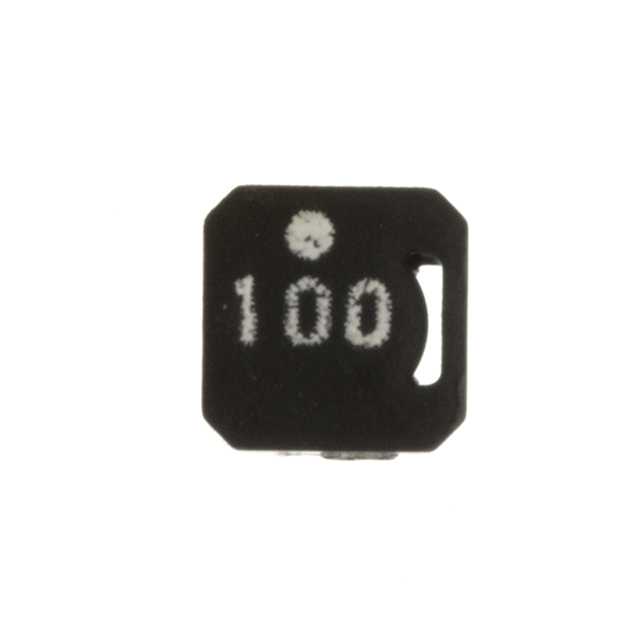

TDK VLCF4020T-100MR85 表面贴装功率电感器, VLCF系列, 10 µH, ± 20%, 绕线, 0.185 ohm, 1.22 A
固定器
欧时:
TDK VLCF 系列 屏蔽 10 μH 绕线贴片电感器 VLCF4020T-100MR85, ±20%容差, 1.22A Idc, 185mΩ最大直流电阻
得捷:
FIXED IND 10UH 850MA 185MOHM SMD
立创商城:
10uH ±20% 850mA 185mΩ
e络盟:
功率电感SMD, 绕线铁氧体, 10 µH, 1.22 A, 屏蔽, 850 mA, VLCF Series, 4mm x 4mm x 2mm
艾睿:
Save valuable space on a PCB with this power VLCF4020T-100MR85 surface mount inductor from TDK. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes wirewound technology. It has an inductance of 10u H. This product is 4.1 mm long, 2 mm tall and 4.1 mm deep. Its test frequency is 100K Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.22Typ A with a maximum resistance of 185m Ohm.
安富利:
Ind Power Shielded Wirewound 10uH 20% 100KHz 1.22A T/R
Chip1Stop:
Ind Power Shielded Wirewound 10uH 20% 100KHz Ferrite 1.22A T/R
Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 1.22A 0.185Ohm DCR 1515 T/R
Newark:
# TDK VLCF4020T-100MR85 Surface Mount Power Inductor, VLCF Series, 10 µH, 1.22 A, 850 mA, Wirewound, 0.185 ohm
儒卓力:
**VLCF4020 10uH 850mA 20% WWT **
MASTER:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 1.22A 185mOhm DCR 1515 T/R
Online Components:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 1.22A 185mOhm DCR 1515 T/R
Electro Sonic:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 1.22A 185mOhm DCR 1515 T/R
Win Source:
10μH Shielded Wirewound Inductor 850mA 185 mOhm Max Nonstandard
额定电流 850 mA
容差 ±20 %
电感 10 µH
产品系列 VLCF
电阻 168 mΩ
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤185 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.185 Ω
安装方式 Surface Mount
引脚数 2
封装 1515
长度 4 mm
宽度 4 mm
高度 2 mm
封装 1515
重量 0.07 g
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
制造应用 Power Management, 消费电子产品, Consumer Electronics, Commercial Grade, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
