VLCF5020T-4R7N1R7-1

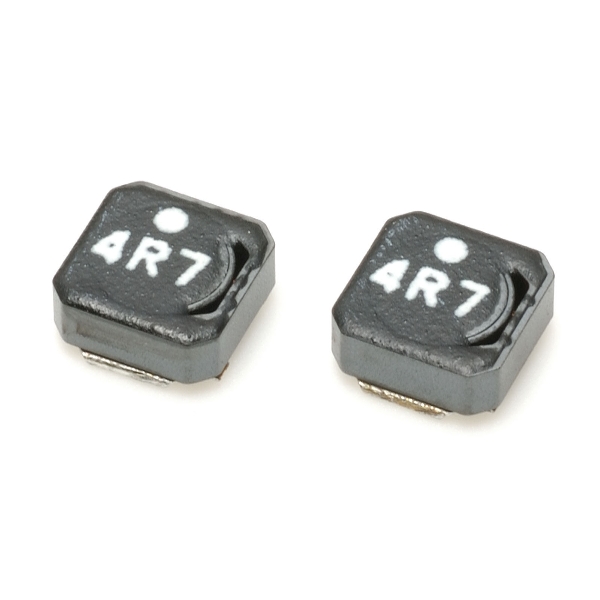

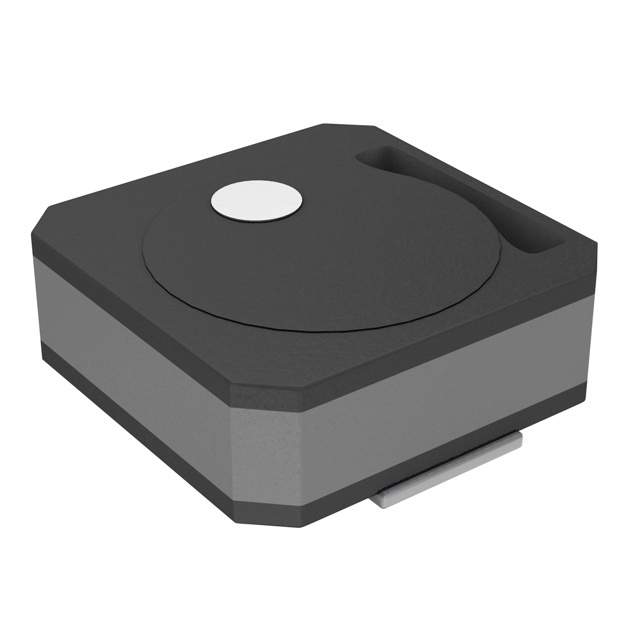

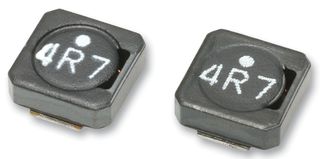

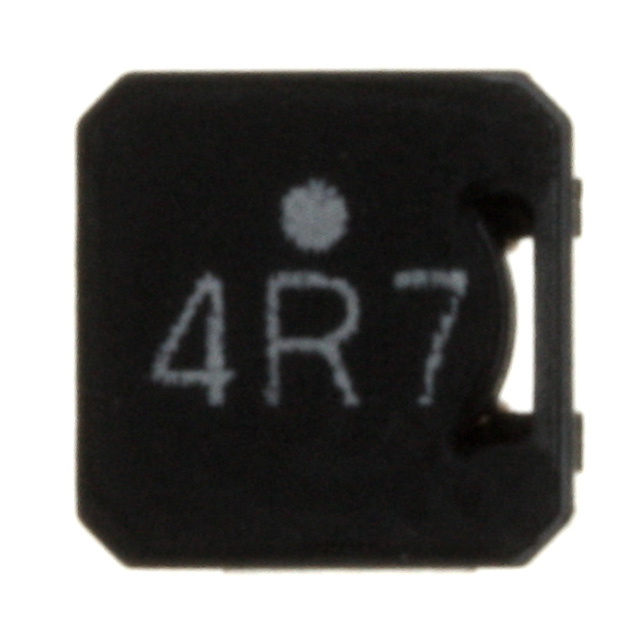

TDK  VLCF5020T-4R7N1R7-1  表面贴装功率电感器, VLCF系列, 4.7 µH, ± 30%, 绕线, 0.122 ohm, 2.09 A

固定器

欧时:
### VLCF5020 系列磁性屏蔽线绕扼流圈高磁屏蔽结构 通用便携式直流到直流变换器线路 测试频率 = 100 kHz ### TDK 非标准 SMT 电感器（扼流圈）

得捷:
FIXED IND 4.7UH 1.7A 122MOHM SMD

立创商城:
4.7uH ±30% 1.7A 102mΩ

e络盟:
功率电感SMD, 绕线铁氧体, 4.7 µH, 2.09 A, 屏蔽, 1.7 A, VLCF Series, 5mm x 5mm x 2mm

艾睿:
This power VLCF5020T-4R7N1R7-1 surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 5.2 mm long, 2 mm tall and 5.2 mm deep. This SMD inductor has a maximum DC current of 2.09Typ A with a maximum resistance of 122m Ohm. Its test frequency is 100K Hz. It has an inductance of 4.7u H. This device utilizes wirewound technology.

安富利:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz 2.09A T/R

Chip1Stop:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 2.09A T/R

Verical:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 2.09A 0.122Ohm DCR 2020 T/R

Newark:
# TDK  VLCF5020T-4R7N1R7-1  Surface Mount Power Inductor, VLCF Series, 4.7 µH, 2.09 A, 1.7 A, Wirewound, 0.122 ohm

儒卓力:
**VLCF5020 4,7uH 1700mA 30% WWT **

MASTER:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 2.09A 122mOhm DCR 2020 T/R

Online Components:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 2.09A 122mOhm DCR 2020 T/R

Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 2.09A 122mOhm DCR 2020 T/R

Win Source:
4.7μH Shielded Wirewound Inductor 1.7A 122 mOhm Max Nonstandard
