VC080530A650DP

AVX  VC080530A650DP  TVS压敏电阻, TransGuard系列, 21 V, 30 V, 67 V, 0805 [2012 公制], 多层压敏变阻器MLV

表面安装瞬态抑制器 - TransGuard®

多层氧化锌陶瓷抑制器

铜包钢、镀层引线精加工

欧时:
### 表面安装瞬态抑制器 - TransGuard®多层氧化锌陶瓷抑制器铜包钢、镀层引线精加工 ### 瞬态电压抑制器（ 陶瓷）

立创商城:
VC080530A650DP

贸泽:
压敏电阻 21VAC 30VDC 0.1J 90pF 41 V 67V

e络盟:
TVS压敏电阻, 21 V, 30 V, TransGuard系列, 67 V, 0805 [2012 公制], 多层压敏变阻器MLV

艾睿:

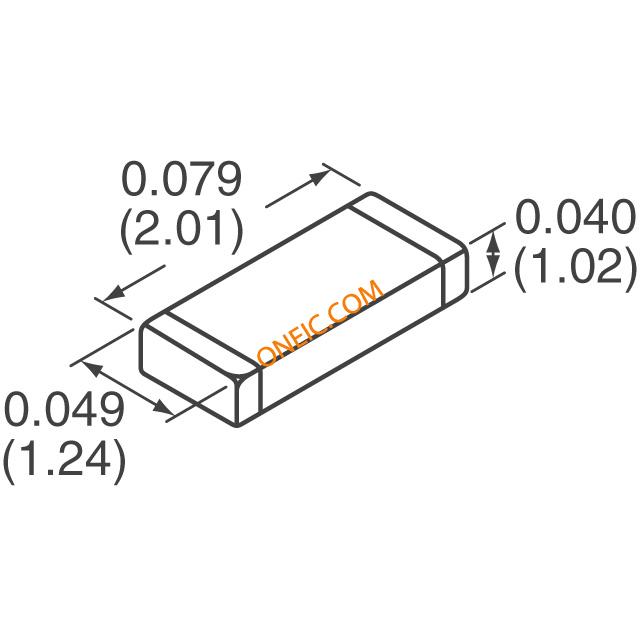

Provide proper variable resistance to your circuit by using this VC080530A650DP MOV from AVX. This device&s;s clamping current is 1 A and clamping voltage is 67 V. Its maximum surge current is 30 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 21 VAC and the maximum DC voltage rating is 30 VDC. This varistor has a voltage of 41 V. This product is 2.01 mm long, 1.02 mm tall and 1.25 mm deep. This device is made with multilayer technology. Its capacitance value is 90pF. Its tolerance voltage is 10%.

安富利:
Var MLV 21VAC/30VDC 30A 41V 0805 SMD T/R

Chip1Stop:
Var MLV 21VAC/30VDC 30A 41V 0805 SMD T/R

TME:
Arrester: Transguard; SMD; 0805; Uoper max:30VDC; 100mJ

Verical:
Var MLV 21VAC/30VDC 30A 41V 0805 SMD T/R

Newark:
# AVX  VC080530A650DP  TVS Varistor, 21 V, 30 V, TransGuard Series, 67 V, 0805 [2012 Metric], Multilayer Varistor MLV

儒卓力:
**VC 0805 DC=30V CL=67V 0,1J 30A **

Win Source:
VARISTOR 36.9V 30A 0805
