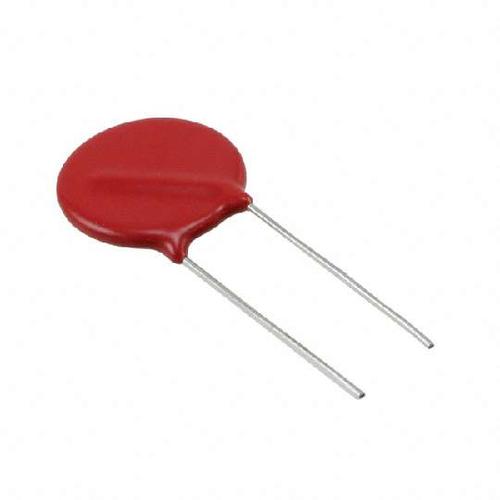

LITTELFUSE V20E550P TVS压敏电阻, UltraMOV系列, 550 V, 745 V, 1.5 kV, 片状 20mm, 金属氧化物压敏变阻器 MOV
The UltraMOV Metal Oxide Varistor Series is designed for applications requiring high peak surge current ratings and high energy absorption capability. UltraMOV varistors are primarily intended for use in AC Line Voltage applications such as Transient Voltage Surge Suppressors TVSS, Uninterruptible Power Supplies UPS, AC Power Taps, AC Power Meters, or other products that require voltage clamping of high transient surge currents from sources such as lightning, inductive load switching, or capacitor bank switching. These devices are produced in radial lead package sizes of 7, 10, 14, and 20 mm and offered in a variety of lead forms. UltraMOVs are manufactured with recognized epoxy encapsulation and are rated for ambient temperatures up to 85°C with no derating. This Series is LASER-branded and is supplied in bulk, ammo pack fan-fold, or tape and reel packaging.* Operating Temperature Range: –55° to +85°C Ambient
* Standard Lead Spacing; 5 mm, 7.5 mm and 10 mm Lead Spacing Also Available — See Footnote for Table Below
* Halogen Free
额定电压DC 745 V
额定电压AC 550 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 300 pF
电路数 1
钳位电压 1.5 kV
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 745 V
额定电压AC Max 550 V
安装方式 Through Hole
封装 Disc 20mm
宽度 8.3 mm
高度 28 mm
封装 Disc 20mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V20E550P Littelfuse 力特 | 当前型号 | 当前型号 |
V20E550 力特 | 完全替代 | V20E550P和V20E550的区别 |
B72220S2551K101 爱普科斯 | 功能相似 | V20E550P和B72220S2551K101的区别 |
