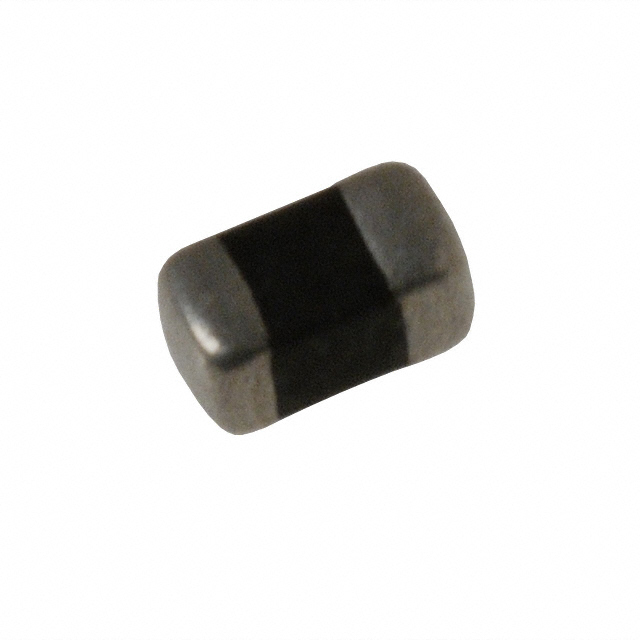

V18MLE0603H

LITTELFUSE  V18MLE0603H  TVS压敏电阻, MLE系列, 18 V, 50 V, 0603 [1608 公制], 多层压敏变阻器MLV

表面安装瞬态抑制器 - MLE 系列

多层半导体陶瓷构造

由半导体陶瓷制成

额定电压（18 V 直流），适用于集成电路保护

提供双向电压钳位

达到 ESD IEC-1000-4-2 等级

Technical specification

---

Stock no.

| Typical ESD Clamp Voltage @ 25°C

Human Body Model, IEC-1000-40-2 |

  | 8kV Contact1 | 15k V Air2

264-7443 | <140V Peak | <85V Peak

264-7459 | <95V Peak | <75V Peak

264-7465 | <75V Peak | <65V Peak

1Direct Discharge To Device Terminals IEC Preferred Test Method |   |

2Corona Discharge Through Air Represents Actual ESD Event |   |

Max. Continuous Working Voltage | 18Vdc -55 to +125°C

---|---

Nominal Voltage VNOM @ 1mA d.c. | 22V Min., 28V Max.

Maximum Leakage IL max. | 0.1μA @ 3.5V d.c., 0.3μA @ 5.5V d.c.

5.0μA @ 15V d.c., 25μA @ 18V d.c.
