Switch Snap Action N.O. SPST Hinge Lever Quick Connect 10A 250VAC 250VDC 248.57VA 1.23N Screw Mount
General Purpose Snap Action Switch
• Industry standard design with switching currents of 10A to 21A
• Widely used for applications where long life expectancy and high reliability is required.
• Choose from a variety of levers, terminals and operating forces.
• Right and Left Barrier options are available for the V-21 and V-16 models
• Heat resistant versions of the V-15 and V-10 are available.
• RoHS Compliant
得捷:
SWITCH SNAP ACT SPST-NO 10A 250V
艾睿:

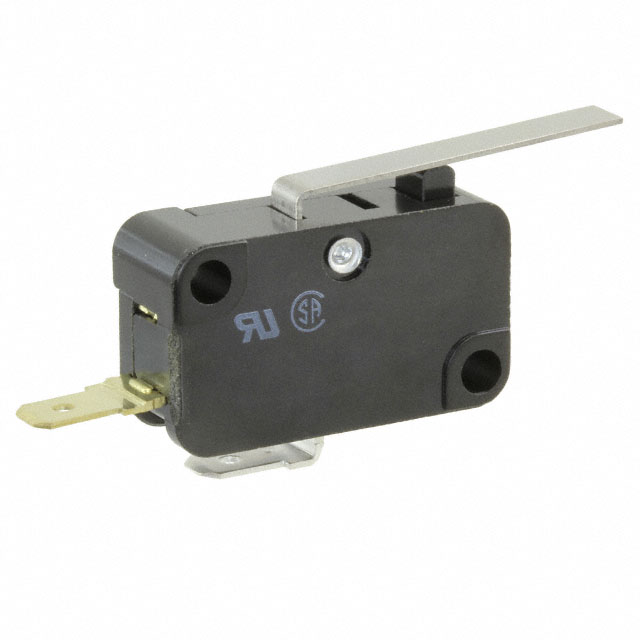

If you&s;re looking for rapid switching to close your circuit use this V-102-3C25 snap-action switch from Omron. This device has a maximum current rating of 10 A @ 250VAC. It has a SPST configuration. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 80 °C. The V-102-3C25 snap action switch has a quick connect termination style. This product is 48.4 mm long, 24.9 mm tall and 10.3 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.
