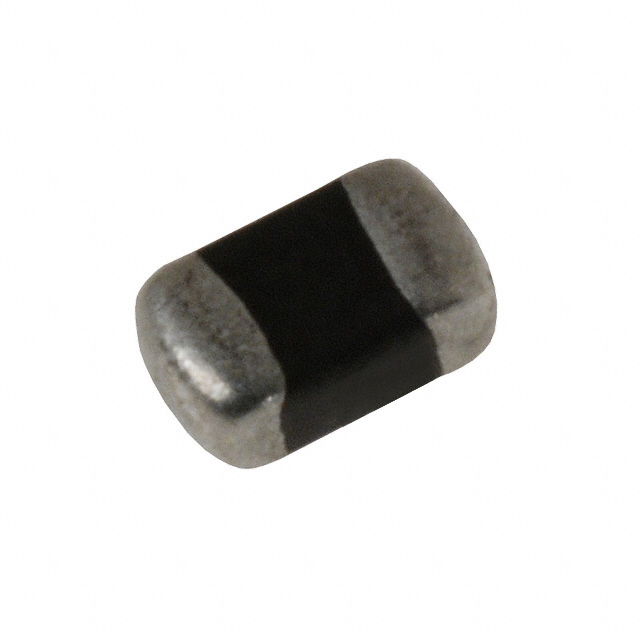

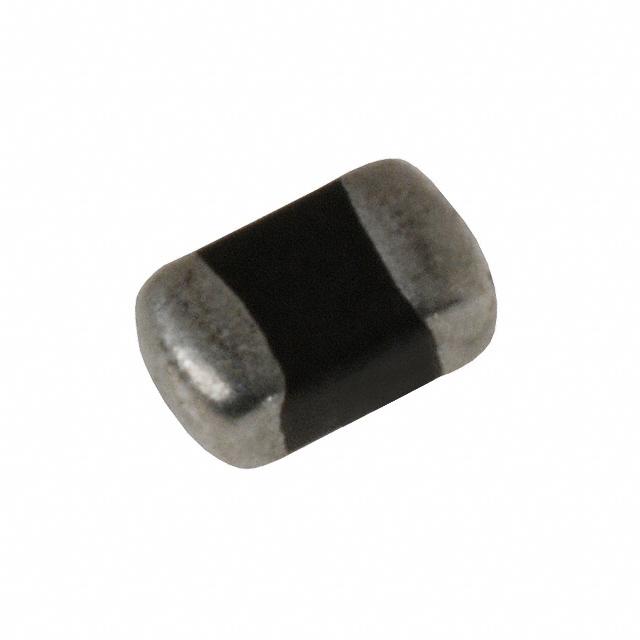

V18MLE0805H

LITTELFUSE  V18MLE0805H  TVS压敏电阻, MLE系列, 18 V, 50 V, 0805 [2012 公制], 多层压敏变阻器MLV

The MLE series Surface Mount Multilayer Metal Oxide Varistor MOV is family of transient voltage suppression device, based on the multilayer fabrication technology. This component is designed to suppress ESD events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance testing. The MLE series is typically applied to protect integrated circuits and other components at the circuit board level operating at 18VDC or less. The fabrication method and materials of this device result in capacitance characteristics suitable for high frequency attenuation/low-pass filter circuit functions, thereby providing suppression and filtering in a single device. The MLE series is manufactured from semiconducting ceramics and is supplied in a leadless, surface mount package. The MLE series is compatible with modern reflow and wave soldering procedures.

.

Halogen-free

.

Rated for ESD IEC-61000-4-2

.

Characterized for impedance and capacitance

.

-55 to 125°C Operating temperature range

.

Leadless 0402, 0603, 0805 and 1206 sizes

.

Operating voltages up to 18VMDC

.

Multilayer ceramic construction technology
