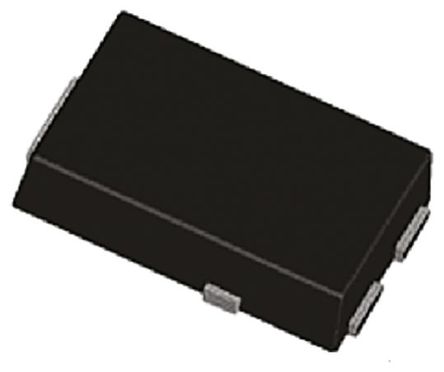

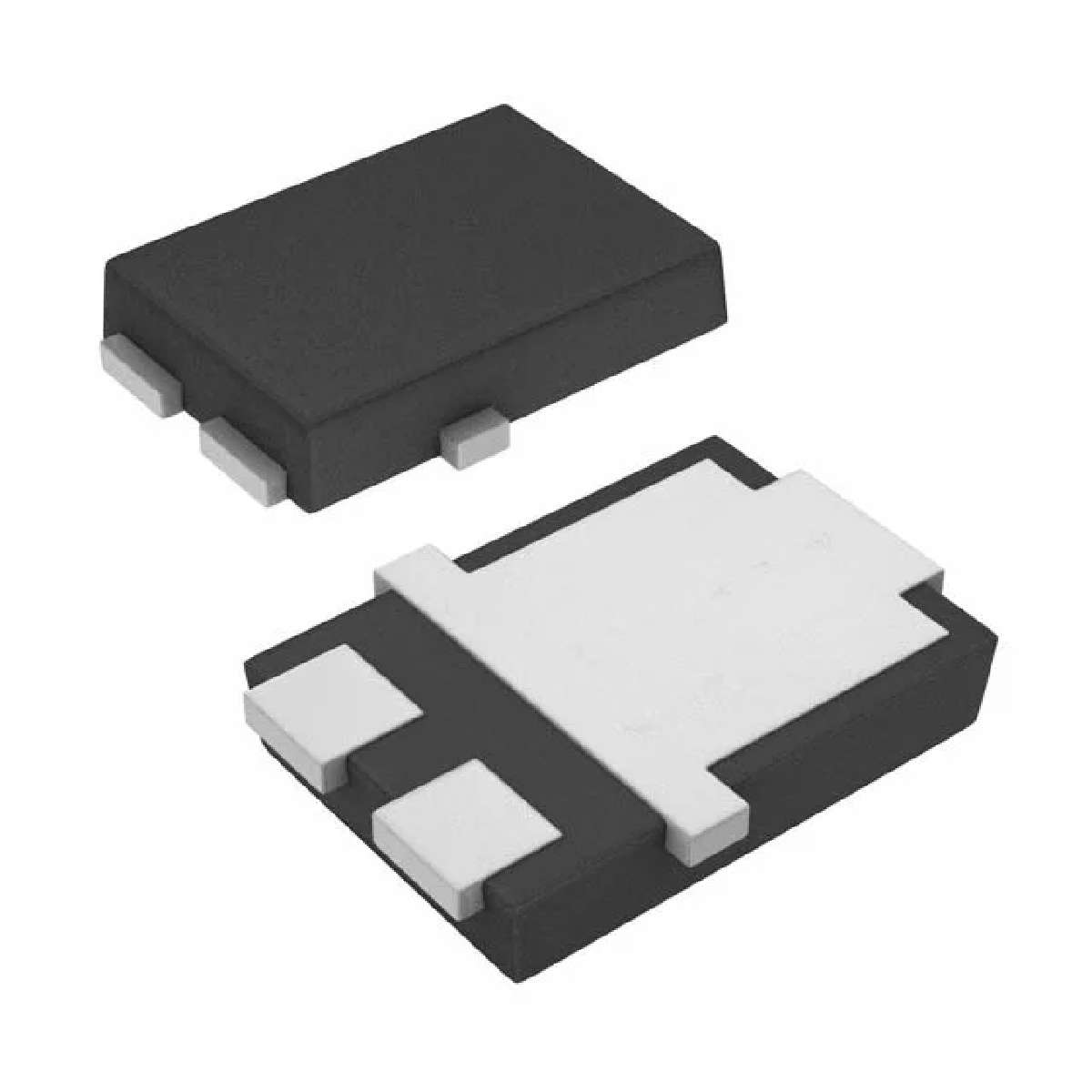

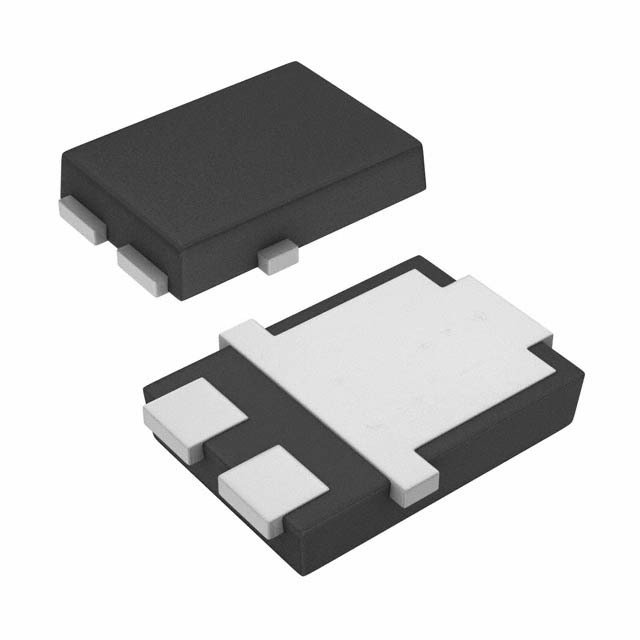

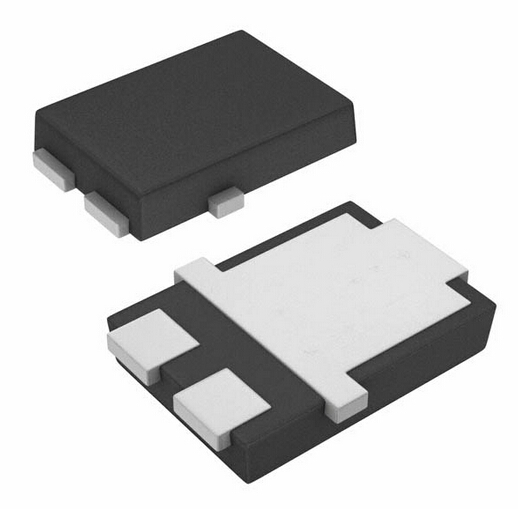

VISHAY V12P10-M3/86A 肖特基整流器, 单, 100 V, 12 A, TO-277A, 3 引脚, 640 mV
The is a surface-mount high current density Trench MOS Barrier Schottky Rectifier with solderable matte tin-plated terminals. It is suitable for use in high frequency inverters, free-wheeling, DC/DC converters and polarity protection applications.
针脚数 3
正向电压 700mV @12A
正向电流 12 A
最大正向浪涌电流(Ifsm) 200 A
正向电压Max 640 mV
正向电流Max 12 A
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 150℃
安装方式 Surface Mount
引脚数 3
封装 TO-277
长度 4.75 mm
宽度 6.15 mm
高度 1.2 mm
封装 TO-277
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Commercial, Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
