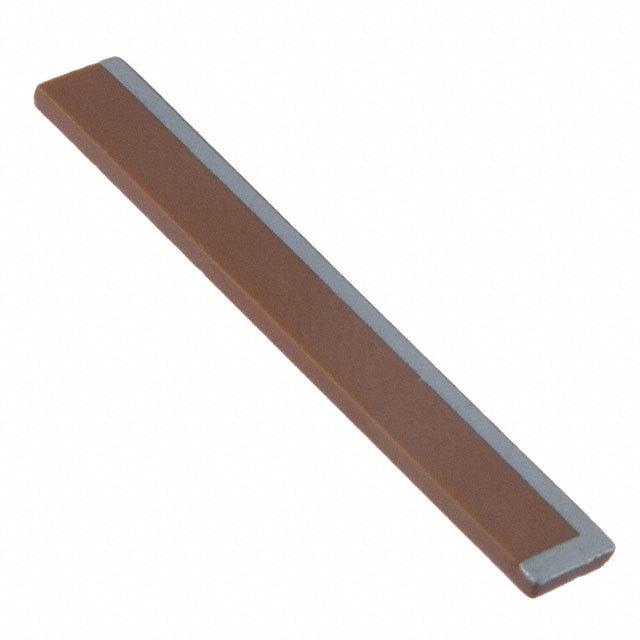

VJ3505M011SXMSRA0图片1

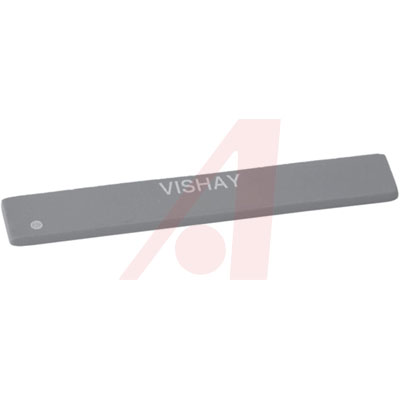

VJ3505M011SXMSRA0图片2

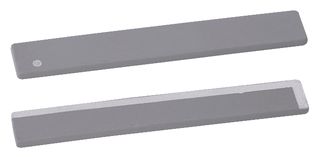

VJ3505M011SXMSRA0图片3
VJ3505M011SXMSRA0图片4
VJ3505M011SXMSRA0概述

VISHAY  VJ3505M011SXMSRA0  陶瓷天线, UHF

The is a high-performance multi-layer ceramic Chip Antenna designed for TV reception in mobile devices in the UHF band. It allows mobile TV device manufacturers to design high quality products that do not bear the penalty of a large external antenna. Focusing on consumer applications, the antenna is designed to be assembled onto a PC board in the standard reflow process.

.
Omnidirectional and linear polarization
.
Requires a tuning circuit and ground plane for optimal performance
.
Standard SMT assembly
VJ3505M011SXMSRA0中文资料参数规格
技术参数

频率 700 MHz

带宽 550 MHz

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

外形尺寸

长度 35 mm

宽度 5 mm

高度 1.2 mm

物理参数

材质 Ceramic

工作温度 40℃ ~ 85℃

其他

包装方式 Tape & Reel TR

制造应用 Consumer Electronics

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free
