V80212SS05Q

V 系列 功率和线电压 双刀双掷 直角 通孔 滑动开关

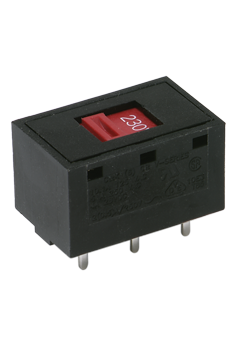

The V series Slide switch for power and line voltage select features snap-in panel and PC mounting. The switch is available in quick connect terminals and actuators with screwdriver slot.

.

10000 Make-and-break electrical life cycles at full load

.

10⁹R Minimum insulation resistance

.

1000Vrms Minimum dielectric strength at sea level

.

UL94V-2 Flammability rated black 6/6 nylon housing

.

UL94V-2 Flammability rated black 6/6 nylon housing top plate

.

Copper, silver-plated contacts

.

Copper, silver-plated terminals

.

Music wire or stainless steel contact spring

.

Epoxy terminal seal

.

-30 to +85°C Operating temperature
