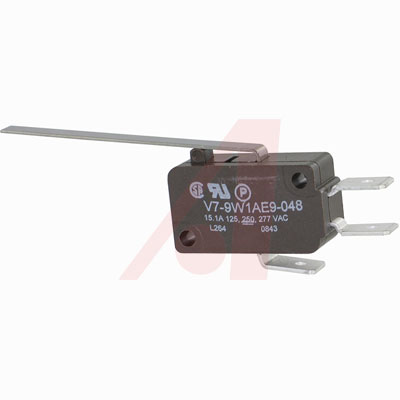

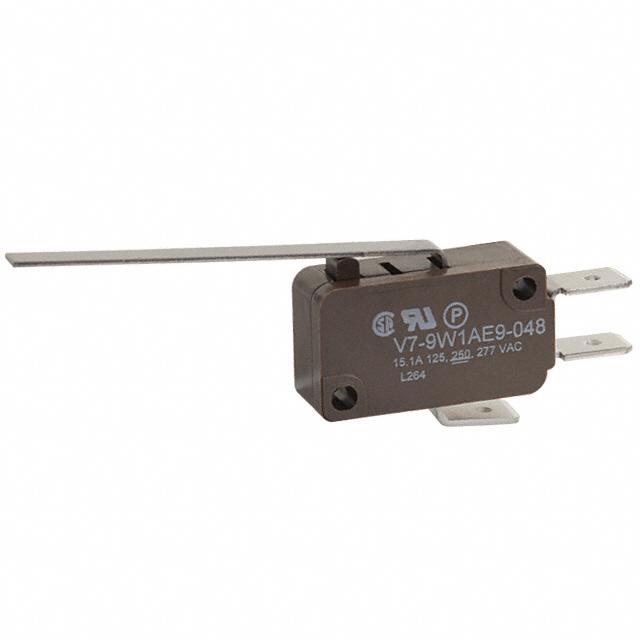

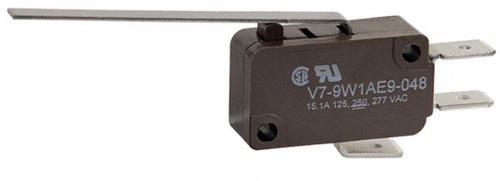

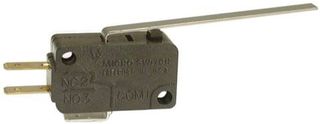

V7-9W1AE9-048

HONEYWELL  V7-9W1AE9-048  微动开关

**Big Performance in a Small Package**

’s MICRO SWITCH V7 miniature switches are designed for long-term reliability, featuring a rugged switch packaged with a thermoplastic housing. These switches can be installed in a wide range of applications from simple or precision on/off limits, to presence/absence sensing, or embedded in pressure or temperature assemblies.

The V7 switch is available as a pin plunger style or with optional integral or auxiliary levers to actuate the switch and offer versatility in applications. The switch requires as little as 0.15 Newtons approximately 0.5 ounces to operate for extremely sensitive applications, or as much as almost 4 Newtons 14 ounces where higher forces are required. The V7 switch can reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A. Agency certifications for the MICRO SWITCH V7 switches are provided through CSA, ENEC, and UL for global use around the world.

**Features**

* Certified with CSA, ENEC, and UL for Global Acceptability

* Reliable Snap-Spring Mechanism with More Than 60 Years of Proven Service

* Reliable Performance in Harsh Conditions

* Actuation on Time
