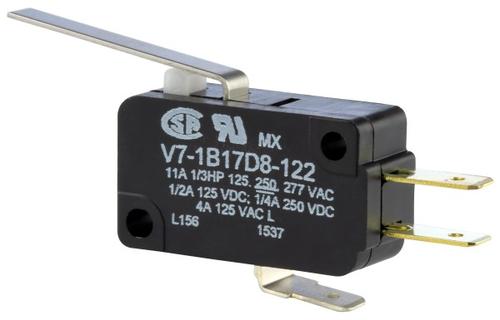

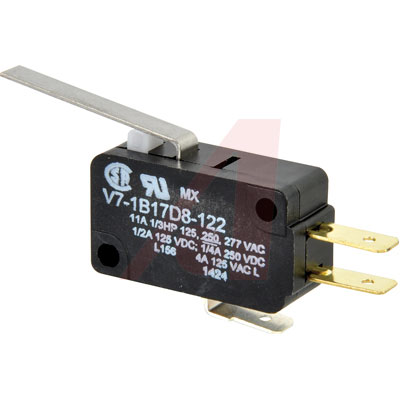

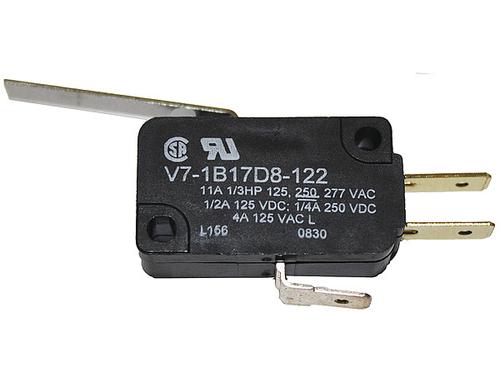

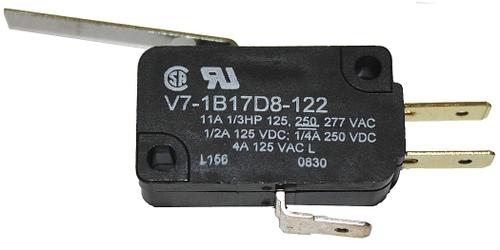

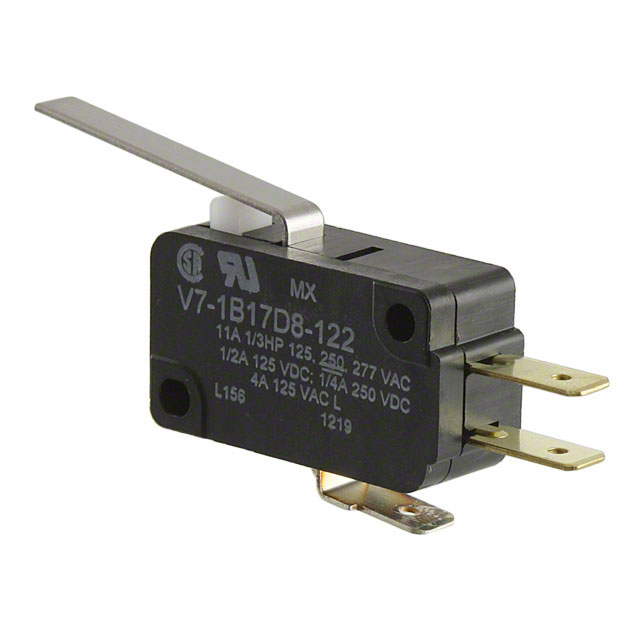

Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 11A 277VAC 250VDC 248.57VA 0.42N Screw Mount
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
艾睿:
If you&s;re looking for rapid switching to close your circuit use this V7-1B17D8-122 snap-action switch from Honeywell. It has a SPDT configuration. This device has a maximum current rating of 11 A @ 277VAC. This snap action switch has a minimum operating temperature of -40 °C and a maximum of 82 °C. The V7-1B17D8-122 snap action switch has a quick connect termination style. This product is 55.37 mm long, 29.16 mm tall and 10.16 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC.
Allied Electronics:
Basic Switch, V7 Series, SPDT, 11A 250 VAC, Straight Lever, QC Tabs, CSA, UL,
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 11A 277VAC 250VDC 248.57VA 0.42N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 11A 277VAC 250VDC 248.57VA 0.42N Screw Mount
Newark:
# HONEYWELL V7-1B17D8-122 Microswitch, V7 Series, SPDT, Quick Connect, 11 A, 277 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 11 A 125, 250, or 277 Vac, 41,4 mm [1.63 in] Straight Lever Actuator, 43 g [1.5 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 18
Online Components:
MICRO SWITCH™ Standard Basic Switches: V15 Series, Single Pole Double Throw SPDT, 5 A 125/250 Vac, ENEC and CQC 5 ...
GOPHER:
Miniature Basic Switch SPDT 11 AMP .187IN QUICK CON SIDE MOUNT 1.5OZ FORCE; MICRO SWITCH
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 11 A 125, 250, or 277 Vac, 41,4 ...
接触器类型 Straight Lever
额定电流 11 A
触点类型 SPDT
触点额定电流 11.0 A
额定电流Max 11A @277VAC
额定功率Max 248.57 VA
工作温度Max 82 ℃
工作温度Min -40 ℃
额定电压 250 VAC
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Quick Connect
高度 29.16 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
