V7-1C18D8

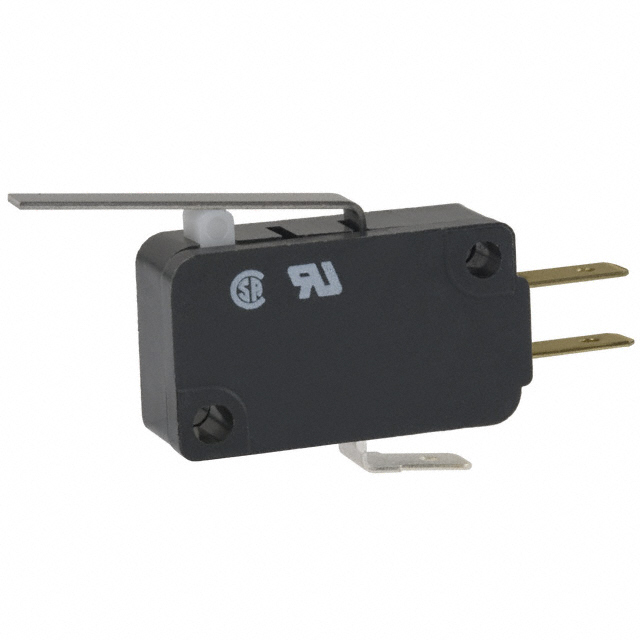

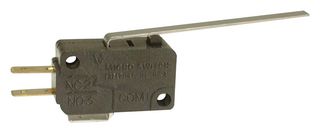

MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 5A 125, 250, or 277VAC, 59,4mm [2.34in] Straight Lever Actuator, 46g [1.6 oz] Maximum Operating Force, 2,9mm [0.11in] Mounting Holes, -40℃ to 85℃ [-40 °F to 185 °F] Temperature Range, 4,75mm x 0,51mm [0.187in x 0.02in] Quick Connect Termination, UL, CSA

’s V7 miniature switches are designed for long term-reliability in a rugged switch

packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple

or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.

艾睿:
Only this V7-1C18D8 snap-action switch from Honeywell can open or close your circuit at the fastest speed. It has a SPDT configuration. This device has a maximum current rating of 15.1 A @ 277VAC. This snap action switch has an operating temperature range of -40 °C to 82 °C. The V7-1C18D8 snap action switch has a quick connect termination style. This product is 38.99 mm long, 23.72 mm tall and 10.16 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC.

Allied Electronics:
Miniature Basic Switch, SPDT, 15A @ 277Vac, Roller Lever Act, Silver Contacts

Chip1Stop:

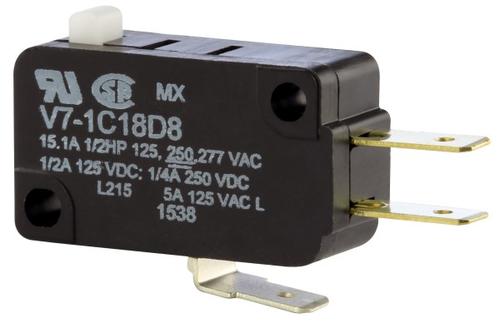

Switch Snap Action N.O./N.C. SPDT Plunger Quick Connect 15.1A 277VAC 250VDC 372.85VA 1.47N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Plunger 15.1A 277VAC 250VDC 372.85VA 1.47N Screw Mount Quick Connect

Newark:
# HONEYWELL  V7-1C18D8  Microswitch, V7 Series, SPDT, Quick Connect, 15.1 A, 277 V

MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 15.1 A 125, 250, or 277 Vac, Pin Plunger, 150 g [5.3 oz] Maximum Operating Force, 3,1 mm [0.12 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 185 °F] Temperature Range, 4,

Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 5 A 125, 250, or 277 Vac, 59,4 ...

GOPHER:
Basic Switch MICRO SWITCH

Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 15.1 A 125, 250, or 277 Vac, Pin ...
