MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Open SPNO, 5A 125, 250, or 277VAC, 35,6mm [1.4in] Straight Lever Actuator, 81g [2.85 oz] Maximum Operating Force, 2,9mm [0.11in] Mounting Holes, -40℃ to 150℃ [-40 °F to 302 °F] Temperature Range, 4,75mm x 0,51mm [0.187in x 0.02in] Quick Connect Termination, UL, CSA
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
艾睿:

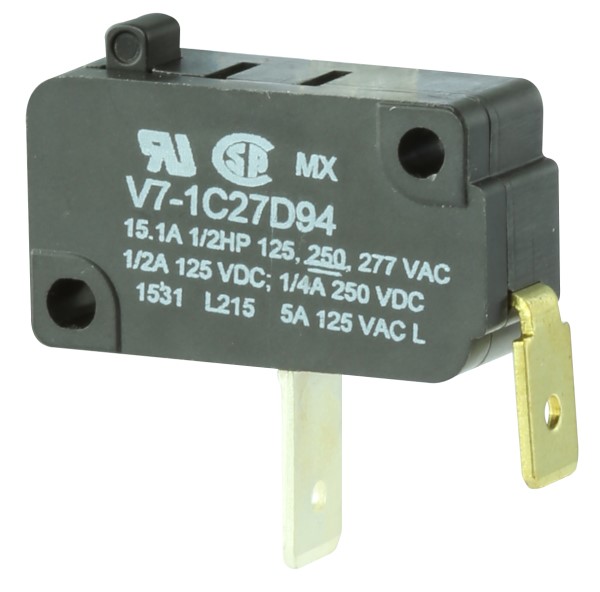

The V7-1C27D94 snap-action switch from Honeywell makes opening or closing your circuit a fast operation. This device has a maximum current rating of 15.1 A @ 277VAC. It has a SPST configuration. This snap action switch has an operating temperature range of -40 °C to 82 °C. The V7-1C27D94 snap action switch has a quick connect termination style. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC. This product is 29.65 mm long, 30.86 mm tall and 10.16 mm deep.
Allied Electronics:
Miniature Basic Switch, SPD, NO, 15A @ 250 Vac, Pin Plunger Act
Chip1Stop:
Switch Snap Action N.O. SPST Plunger Quick Connect 15.1A 277VAC 250VDC 372.85VA 1.47N Screw Mount
Verical:
Switch Snap Action N.O. SPST Plunger Quick Connect 15.1A 277VAC 250VDC 372.85VA 1.47N Screw Mount
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Open SPNO, 15.1 A 125, 250, or 277 Vac, Pin Plunger, 150 g [5.3 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 185 °F] Temperature Range, M
Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Open SPNO, 5 A 125, 250, or 277 Vac, 35,6 ...
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Open SPNO, 15.1 A 125, 250, or 277 Vac, Pin ...
接触器类型 Pin Plunger
额定电流 15 A
触点类型 SP-NO
额定电流Max 15.1A @277VAC
额定功率Max 372.85 VA
工作温度Max 82 ℃
工作温度Min -40 ℃
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Quick Connect, Chassis
长度 28.83 mm
高度 15.88 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
