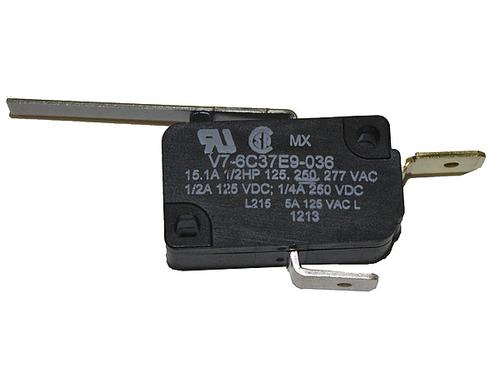

基本/快动开关 V-BASIC SW SPNO 15A 250VAC STR LEV ACTR
Snap action switches are highly sensitive switches that respond to very small movements and can rapidly change from one contact position to the other and are therefore mostly used in timing devices, vending machines, computer and business equipment, test instruments, HVAC equipment, office equipment, manually operated devices, valves, gaming equipment and pressure switches.
Snap Action Switch from is specially designed for 100K operations at a full load. With current rating ranging from 0.1 A to 25 A, this Honeywell Switch comes with a long mechanical life of up to 10M and is best suited for higher cost-of-failure applications.
Product Highlights
· World-wide package size acceptance
· Current rating ranges from 0.1 A to 25 A
· Best suited for higher cost-of-failure applications
· Designed for 100K operations at a full load or 10M for mechanical life
· UL/CSA and ENEC approvals
Potential Applications:
Appliances
Vending machines
Timing devices
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment
Manually operated devices
Valves
Gaming equipment
Pressure switches
接触器类型 Straight Lever
触点类型 SP-NC
额定电流Max 15.1A @277VAC
额定功率Max 372.85 VA
工作温度Max 82 ℃
工作温度Min -40 ℃
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Quick Connect, Chassis
高度 27.53 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
