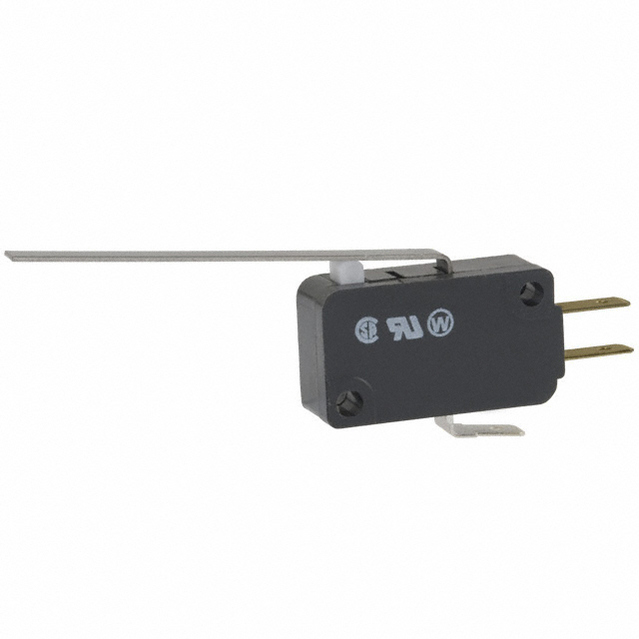

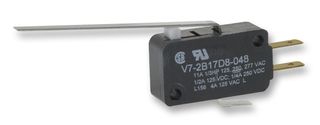

HONEYWELL V7-1A17D8-048 微动开关
The V7 series MICRO SWITCH™ miniature Basic Switch designed for long term-reliability in a rugged switch packaged with a thermoplastic housing. It is used for simple or precision on/off, end of limit, presence/absence, pressure, temperature and manual operator interface application needs. It can also be used in appliances, timing devices, manually operated devices, office equipment, valves, vending machines, gaming equipment and pressure switches.
- .
- Actuator on time
- .
- Reliable performance in harsh conditions
- .
- Best suited for higher cost-of-failure applications
- .
- Designed for 100K operations at a full load or 10M for mechanical life
- .
- Current rating ranges from 0.1 A to 25 A
- .
- UL/CSA approvals
接触器类型 Straight Lever
额定电压AC 250 V
额定电流 5 A
触点类型 SPDT
额定电流Max 5A @277VAC
额定功率Max 74.57 VA
工作温度Max 82 ℃
工作温度Min -40 ℃
额定电压AC Max 277 V
安装方式 Chassis, Quick Connect
高度 29.51 mm
触点材质 Silver
重量 8.00 g
工作温度 40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, Computers & Computer Peripherals, HVAC, Medical, 通信与网络, Communications & Networking, 医用, 计算机和计算机周边, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V7-1A17D8-048 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
D3V-113-1C5T 欧姆龙 | 功能相似 | V7-1A17D8-048和D3V-113-1C5T的区别 |
