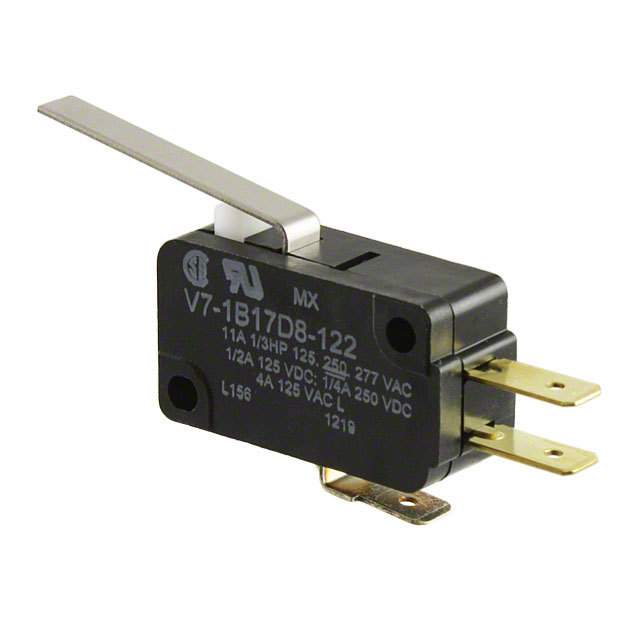

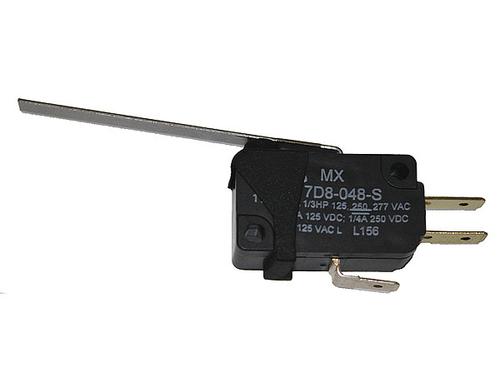

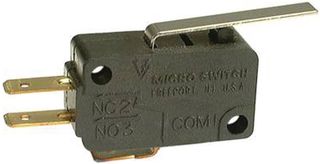

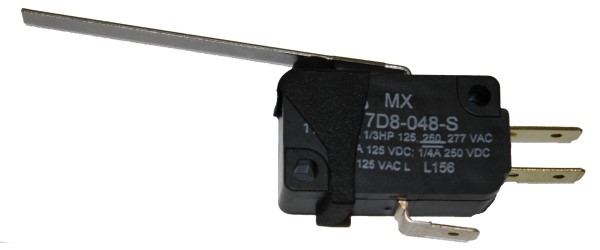

Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 11A 277VAC 250VDC 0.49N Screw Mount
MICRO SWITCH™ Standard Basic Switches: V15 Series, Single Pole Double Throw SPDT, 5 A 125/250 Vac, ENEC and CQC 5 2.5 A 125/250 Vac, Gold-Plated Contacts, 15 g [0.5 oz] Maximum Operating Force, Pin Plunger Actuator, 6,30 mm x 0,80 mm [0.250 in x 0.032 in] Spread Quick Connect Termination, Temperature Rating -25 °C to 85 °C [-13 °F to 185 °F], Metric 3,1 mm [0.12 in] Mounting Holes, ENEC, CQC, UL, cUL
Potential Applications:
Appliances
Vending machines
Timing devices
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment
Manually operated devices
Valves
Gaming equipment
Pressure switches
接触器类型 Straight Lever
触点类型 SPDT
额定电流Max 11 A
工作温度Max 82 ℃
工作温度Min -40 ℃
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Quick Connect, Chassis
高度 23.34 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
