VFC110APG4

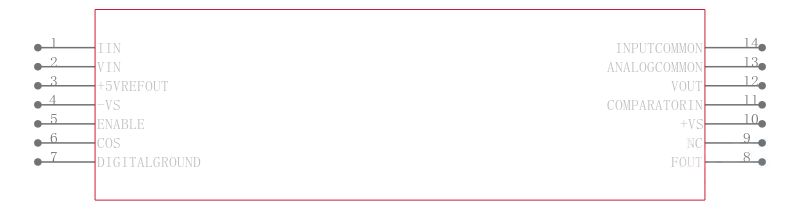

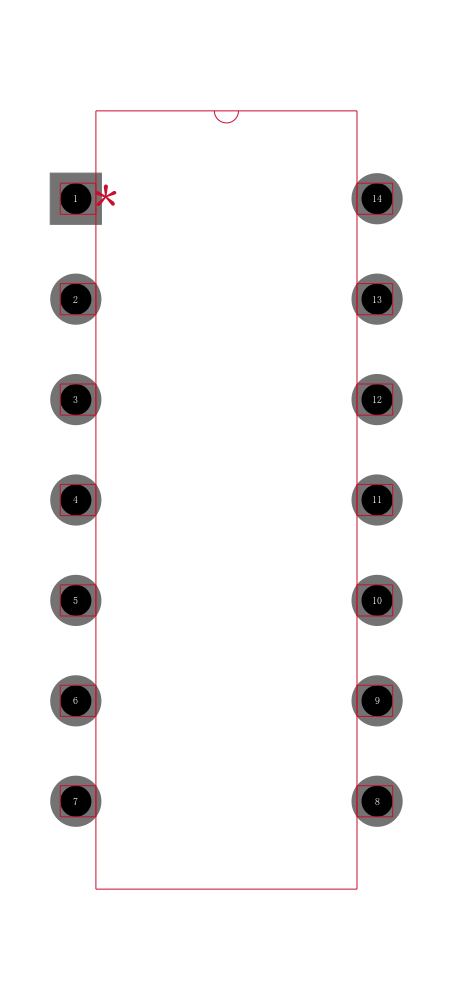

VFC 4MHz 14Pin PDIP Tube

DESCRIPON

The VFC110 voltage-to-frequency converter is a third-generation VFC offering improved features and performance. These include higher frequency operation, an onboard precision 5V reference, and a Disable function.

The precision 5V reference can be used for offsetting the VFC transfer function, as well as exciting transducers or bridges. The Enable pin allows several VFCs’ outputs to be paralleled, multiplexed, or simply to shut off the VFC. The open-collector frequency output is TTL-/CMOS-compatible. The output may be isolated by using an opto-coupler or transformer.

Internal input resistor, one-shot and integrator capacitors simplify applications circuits. These components are trimmed for a full-scale output frequency of 4MHz at 10V input. No additional components are required for many applications.

FEATURES

● HIGH-FREQUENCY OPERATION: 4MHz FS max

● EXCELLENT LINEARITY:

   ±0.02% typ at 2MHz

● PRECISION 5V REFERENCE

● DISABLE PIN

● LOW JITTER

APPLICATIONS

● INTEGRATING A/D CONVERSION

● PROCESS CONTROL

● VOLTAGE ISOLATION

● VOLTAGE-CONTROLLED OSCILLATOR

● FM TELEMETRY
