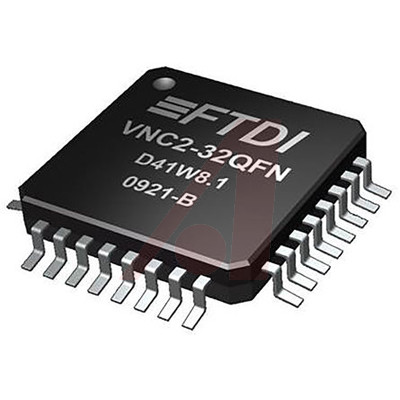

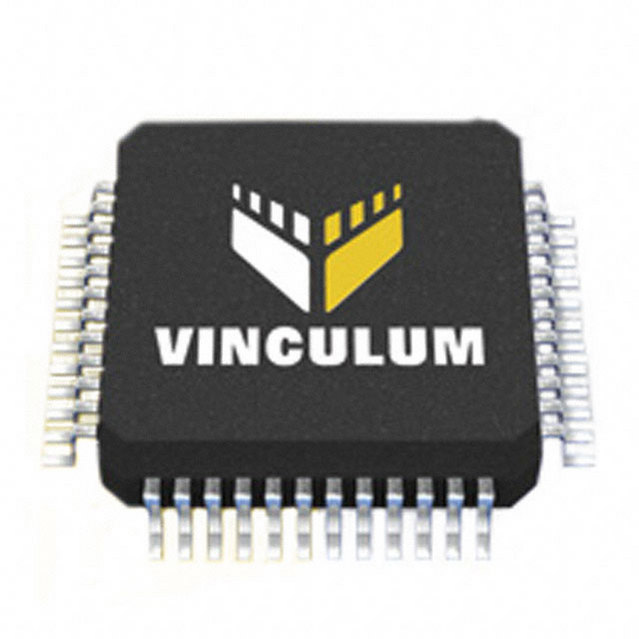

接口, USB, Vinculum-II可编程USB主控制器, USB 2.0, 2.97 V, 3.63 V, LQFP, 32 引脚
Want to centralize your components to one device? Look no further use this microcontroller manufactured by Future Technology Devices International. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 48 MHz. This device has a typical operating supply voltage of 1.8|3.3 V. Its minimum operating supply voltage of 1.62|2.97 V, while its maximum is 1.98|3.63 V. Its flash program memory is 256KB. This is a 16 bit processor.
供电电流 25 mA
针脚数 32
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.62V ~ 1.98V
电源电压Max 3.63 V
电源电压Min 2.97 V
安装方式 Surface Mount
引脚数 32

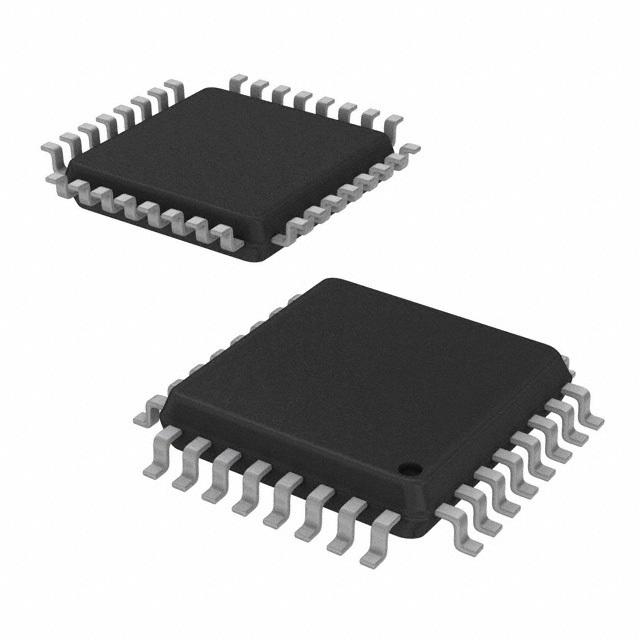

封装 LQFP-32
封装 LQFP-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 视频和目视, 工业, 成像, 医用, 电机驱动与控制, 通信与网络, 计算机和计算机周边, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VNC2-32L1B-REEL FTDI Chip 飞特帝亚 | 当前型号 | 当前型号 |
VNC2-32Q1B-REEL 飞特帝亚 | 完全替代 | VNC2-32L1B-REEL和VNC2-32Q1B-REEL的区别 |
VNC2-32L1B-TRAY 飞特帝亚 | 类似代替 | VNC2-32L1B-REEL和VNC2-32L1B-TRAY的区别 |
VNC2-32L1C-REEL 飞特帝亚 | 类似代替 | VNC2-32L1B-REEL和VNC2-32L1C-REEL的区别 |
