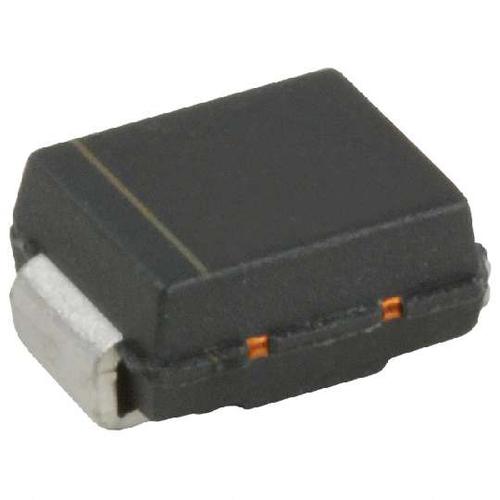

VISHAY VS-MBRS140TRPBF 肖特基整流器, 单, 40 V, 1 A, DO-214AA, 2 引脚, 600 mV
The is a surface-mount Schottky Rectifier designed for applications requiring low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging and reverse battery protection.
针脚数 2
正向电压 600mV @1A
正向电流 1 A
最大正向浪涌电流(Ifsm) 380 A
正向电压Max 600 mV
正向电流Max 1 A
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.7 mm
宽度 3.8 mm
封装 DO-214AA
产品生命周期 Obsolete
包装方式 Cut Tape CT
制造应用 Power Management, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-MBRS140TRPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-MBRS140-M3/5BT 威世 | 完全替代 | VS-MBRS140TRPBF和VS-MBRS140-M3/5BT的区别 |
MBRS140T3G 安森美 | 功能相似 | VS-MBRS140TRPBF和MBRS140T3G的区别 |
STPS140U 意法半导体 | 功能相似 | VS-MBRS140TRPBF和STPS140U的区别 |
