特殊用途放大器 2-Channel Variable Gain Amplifier
The VCA2617 is a dual-channel, continuously variable, voltage-controlled gain amplifier well-suited for a variety of ultrasound systems as well as applications in proximity detectors and test equipment. The VCA2617 uses a true variable-gain amplifier architecture, achieving very good noise performance at low gains, while not sacrificing high gain distortion performance.
Following a linear-in-dB response, the VCA2617 gain can be varied over a 48dB range with a 0.2V to 2.3V control voltage. Two separate high-impedance control inputs allow for a channel independent variation of the gains. Each channel of the VCA2617 can be configured to provide a gain range of -10dB to 38dB, or -16dB to 32dB, depending on the gain select pin HG\\\\. This post-gain feature allows the user to optimize the output swing of VCA2617 for a variety of high-speed analog-to-digital converters ADC. As a means to improve system overload recovery time, the VCA2617 also provides an internal clamping circuitry where an externally applied voltage sets the desired output clamping level.

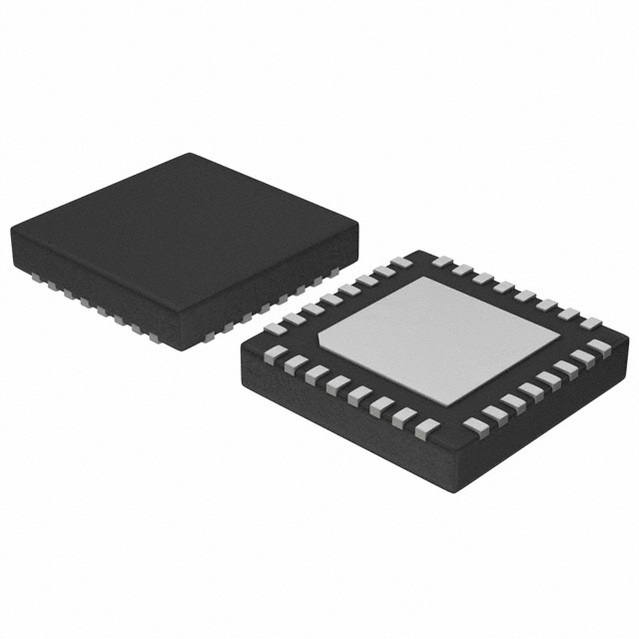

The VCA2617 operates on a single +5V supply while consuming only 52mW per channel. It is available in a small QFN-32 package 5x5mm.
电源电压DC 5.00 V
电路数 2
通道数 2
耗散功率 125 mW
带宽 50 MHz
转换速率 100 V/μs
增益频宽积 50 MHz
可用通道 D
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 50 MHz
电源电压 4.75V ~ 5.25V
电源电压Max 5V ~ 7V
安装方式 Surface Mount
引脚数 32
封装 VQFN-32
封装 VQFN-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VCA2617RHBT TI 德州仪器 | 当前型号 | 当前型号 |
VCA2617RHBR 德州仪器 | 类似代替 | VCA2617RHBT和VCA2617RHBR的区别 |
VCA2617RHBTG4 德州仪器 | 类似代替 | VCA2617RHBT和VCA2617RHBTG4的区别 |
