Vishay Semiconductor肖特基整流器是半导体二极管,具有极低的正向电压降和非常快的切换作用。 肖特基二极管的反向恢复时间非常快。 肖特基二极管适用于需要快速切换和低功耗的应用。 Vishay 高性能肖特基二极管提供 1A 至 175A 的正向额定电流和 15V 至 150V 的额定电压。### 二极管和整流器,Vishay Semiconductor

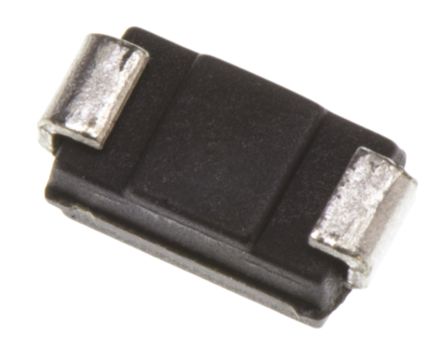

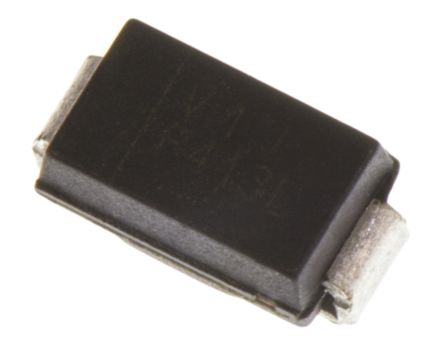

DESCRIPTION
The VS-10MQ100-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
FEATURES
• Low forward voltage drop
• Guard ring for enhanced ruggedness and long term reliability
• Halogen-free according to IEC 61249-2-21 definition
• Small foot print, surface mountable
• High frequency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• Compliant to RoHS Directive 2002/95/EC
针脚数 2
正向电压 780mV @1A
正向电流 1 A
最大正向浪涌电流(Ifsm) 120 A
正向电压Max 780 mV
正向电流Max 1.5 A
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.9 mm
高度 2.09 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-10MQ100-M3/5AT Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
STPS2150A 意法半导体 | 功能相似 | VS-10MQ100-M3/5AT和STPS2150A的区别 |
STTH102A 意法半导体 | 功能相似 | VS-10MQ100-M3/5AT和STTH102A的区别 |
STPS1150A 意法半导体 | 功能相似 | VS-10MQ100-M3/5AT和STPS1150A的区别 |
