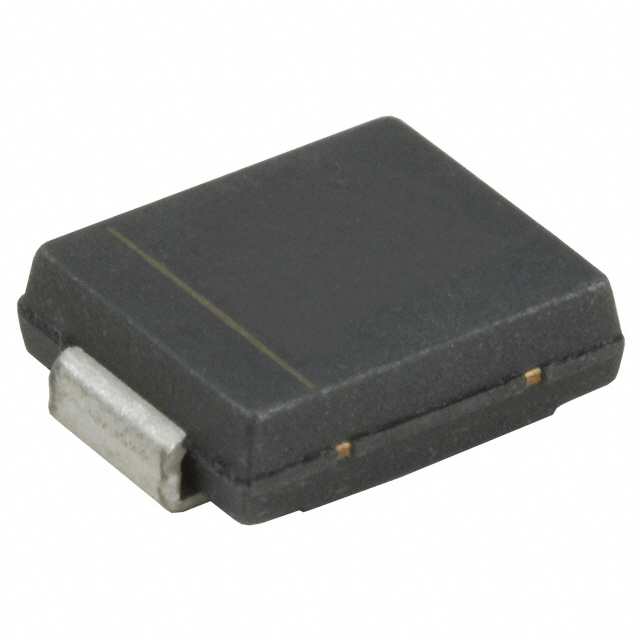

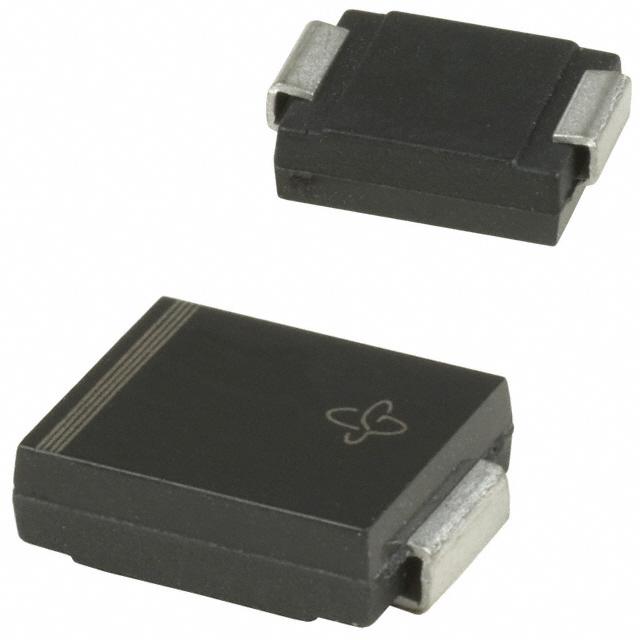

VISHAY VS-MBRS360TRPBF 肖特基整流器, 单, 60 V, 3 A, DO-214AB, 2 引脚, 740 mV
The is a surface mount Schottky Rectifier has been designed for applications requiring low forward drop and small foot prints on PC boards. The Schottky Rectifier features very low forward voltage drop, high frequency operation and guard ring for enhanced ruggedness and long term reliability.
- .
- 1A Repetitive avalanche current
- .
- 180pF Maximum junction capacitance
- .
- 3nH Typical series inductance
- .
- 12°C/W Junction to lead maximum thermal resistance
- .
- 46°C/W Junction to ambient maximum thermal resistance
针脚数 2
正向电压 740mV @3A
正向电流 3 A
最大正向浪涌电流（Ifsm） 790 A
正向电压Max 740 mV
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
封装 DO-214AB
工作温度 -55℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Power Management, Industrial, 电源管理, 工业, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-MBRS360TRPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-MBRS360-M3/9AT 威世 | 完全替代 | VS-MBRS360TRPBF和VS-MBRS360-M3/9AT的区别 |
SS36-E3/57T 威世 | 类似代替 | VS-MBRS360TRPBF和SS36-E3/57T的区别 |
SS36 飞兆/仙童 | 功能相似 | VS-MBRS360TRPBF和SS36的区别 |
