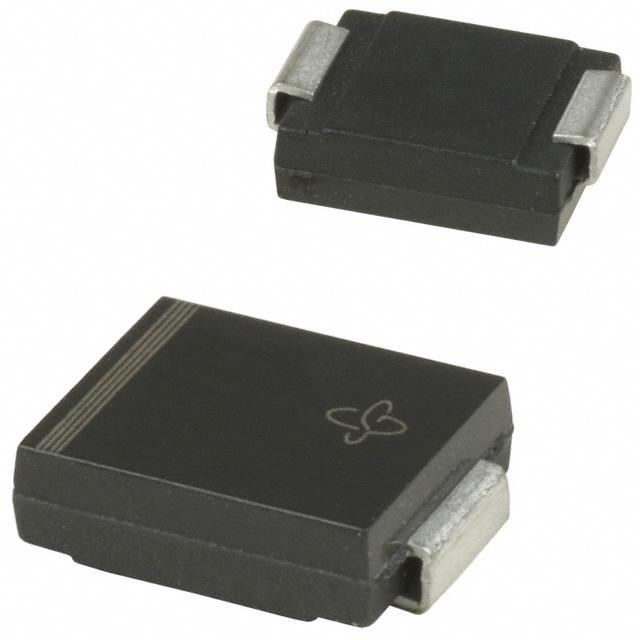

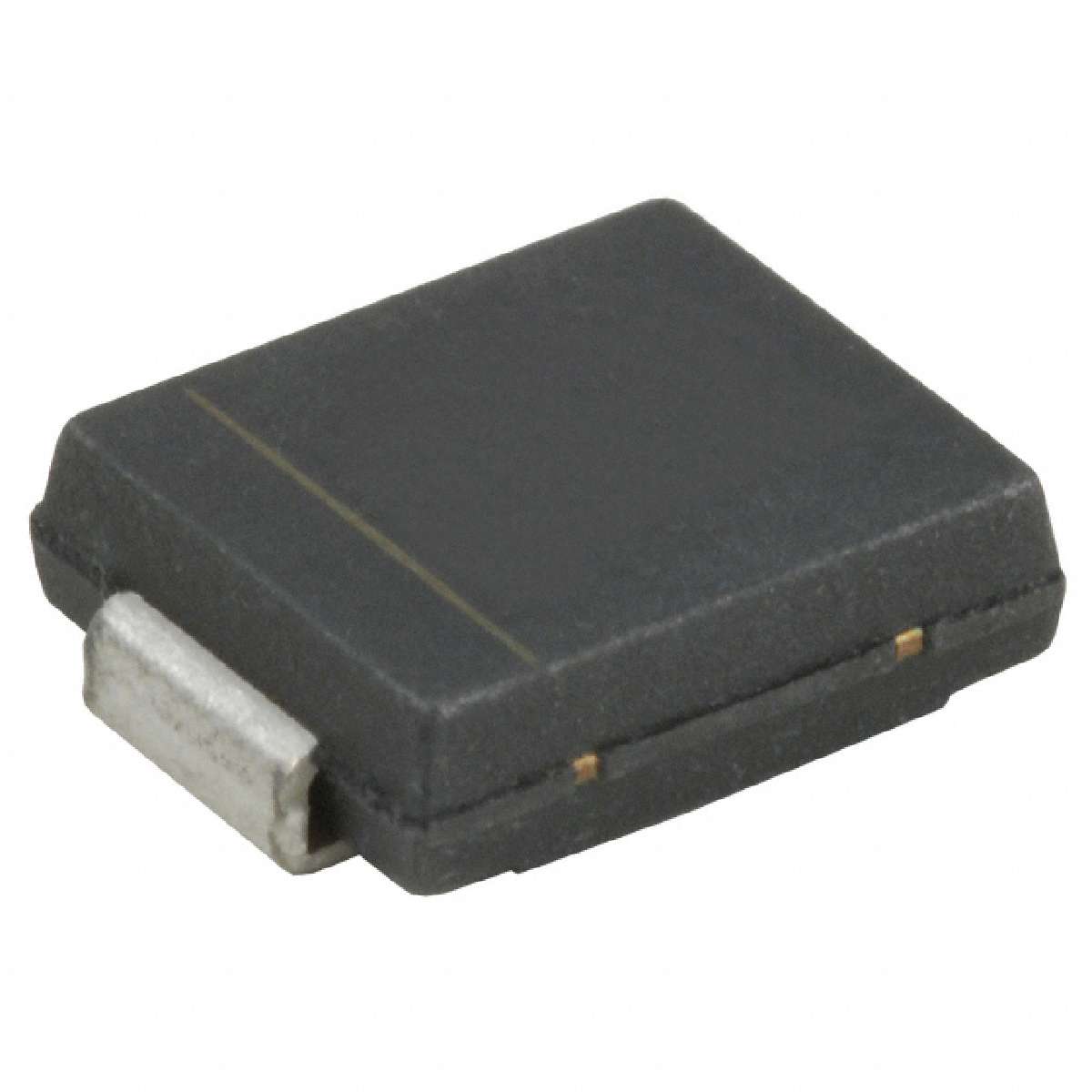

VISHAY VS-30BQ015TRPBF 肖特基整流器, 单, 15 V, 3 A, DO-214AB, 2 引脚, 350 mV
The is a surface-mount Schottky Rectifier designed for applications requiring low forward drop and very small foot prints on PC boards. The proprietary barrier technology allows for reliable operation up to 125°C junction temperature. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging and reverse battery protection. It features high-purity, high-temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
针脚数 2
正向电压 350mV @3A
正向电流 3 A
最大正向浪涌电流(Ifsm) 650 A
正向电压Max 350 mV
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, Computers & Computer Peripherals, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-30BQ015TRPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-30BQ015-M3/9AT 威世 | 完全替代 | VS-30BQ015TRPBF和VS-30BQ015-M3/9AT的区别 |
VS-30BQ015PBF 威世 | 类似代替 | VS-30BQ015TRPBF和VS-30BQ015PBF的区别 |
30BQ015TR 威世 | 类似代替 | VS-30BQ015TRPBF和30BQ015TR的区别 |
