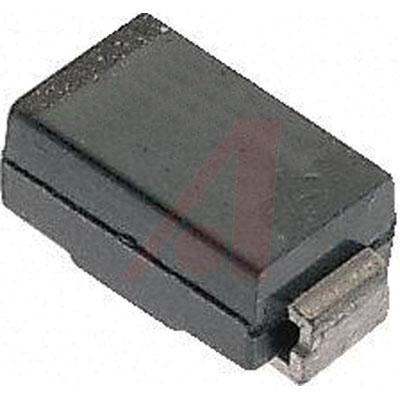

VISHAY VS-10MQ060NPBF 肖特基整流器, 单, 60 V, 2.1 A, DO-214AC, 2 引脚, 630 mV
The 10MQ060NPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
**Features:**
* Small Foot Print, Surface Mountable
* Low Forward Voltage Drop
* High Frequency Operation
* Guard Ring for Enhanced Ruggedness and Long Term Reliability
* Lead Pb-Free PbF Suffix
* Designed and Qualified for Industrial Level
针脚数 2
正向电压 0.71 V
正向电流 1 A
最大正向浪涌电流（Ifsm） 40 A
正向电压Max 630 mV
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
高度 2.237 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Each
制造应用 Computers & Computer Peripherals, Power Management, Industrial, 电源管理, 安全, Safety, 工业, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-10MQ060NPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-10MQ060NTRPBF 威世 | 类似代替 | VS-10MQ060NPBF和VS-10MQ060NTRPBF的区别 |
