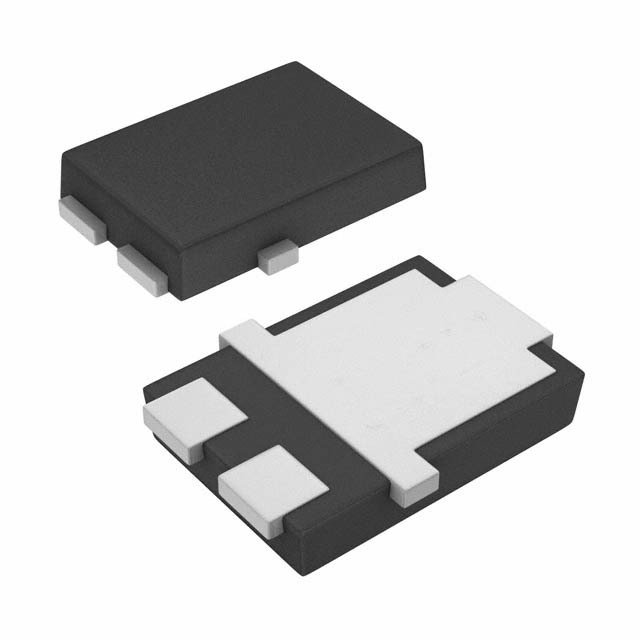

VISHAY V10P45-M3/86A 肖特基整流器, 单, 45 V, 10 A, TO-277A, 3 引脚, 570 mV
High Current Density Surface Mount
Trench MOS Barrier Schottky Rectifier
Ultra Low VF= 0.34 V at IF= 5 A
FEATURES
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Trench MOS Schottky technology
• Low forward voltage drop, low power losses
• High efficiency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
• Halogen-free according to IEC 61249-2-21 definition
TYPICAL APPLICATIONS
For use in low voltage high frequency DC/DC converters, freewheeling, and polarity protection applications.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V10P45-M3/86A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
V10P45S-M3/86A 威世 | 完全替代 | V10P45-M3/86A和V10P45S-M3/86A的区别 |
V10P45S-M3/87A 威世 | 完全替代 | V10P45-M3/86A和V10P45S-M3/87A的区别 |
V10P45-M3/87A 威世 | 功能相似 | V10P45-M3/86A和V10P45-M3/87A的区别 |
