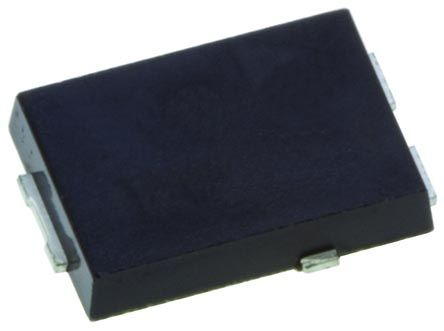

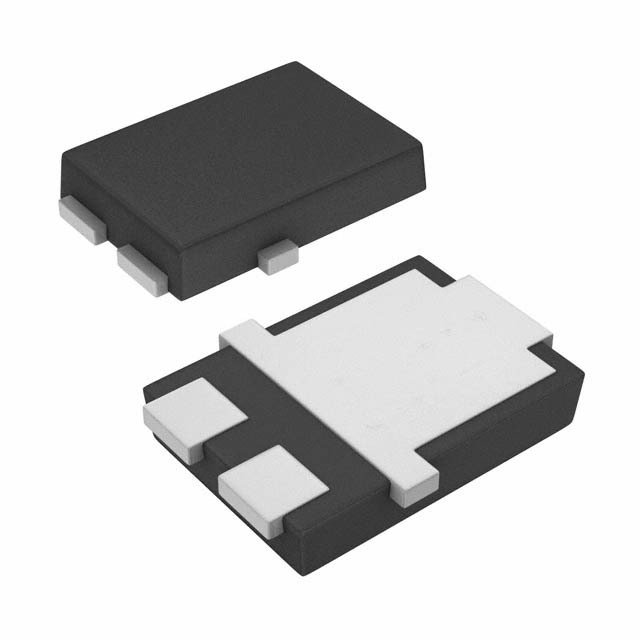

VS-6CSH02HM3/86A

VISHAY  VS-6CSH02HM3/86A  快速/超快二极管, AEC-Q101, 双共阴极, 200 V, 6 A, 940 mV, 25 ns, 150 A

The is a Hyperfast™ Recovery Rectifier specifically designed with optimized performance of forward voltage drop. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in snubber, boost, piezo-injection, as high frequency rectifiers and freewheeling diodes. The extremely optimized stored charge and low recovery current minimize the switching losses and reduce power dissipation in the switching element.

.

Reduced Qrr and soft recovery

.

Low forward voltage drop

.

Low leakage current

.

Meets MSL level 1

.

Meets JESD 201 class 2 whisker test
