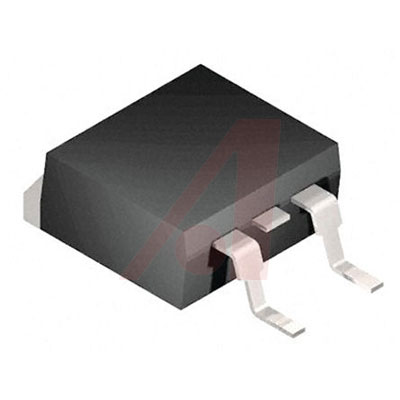

VISHAY VB20100S-E3/8W 肖特基整流器, 单, 100 V, 20 A, TO-263AB, 3 引脚, 900 mV
The is a high-voltage Trench MOS Barrier Schottky Rectifier with solderable matte tin-plated terminals. It is suitable for use in high frequency converters, switching power supplies, free-wheeling diodes, OR-ing diode, DC/DC converters and reverse battery protection.
输出电流 ≤20.0 A
针脚数 3
正向电压 0.76 V
极性 Standard
正向电流 20 A
最大正向浪涌电流(Ifsm) 250 A
正向电压Max 900 mV
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 TO-263-3
长度 10.45 mm
宽度 9.14 mm
高度 9.14 mm
封装 TO-263-3
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, Commercial, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VB20100S-E3/8W Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VB20100S-E3/4W 威世 | 类似代替 | VB20100S-E3/8W和VB20100S-E3/4W的区别 |
STPS20SM100SG-TR 意法半导体 | 功能相似 | VB20100S-E3/8W和STPS20SM100SG-TR的区别 |
