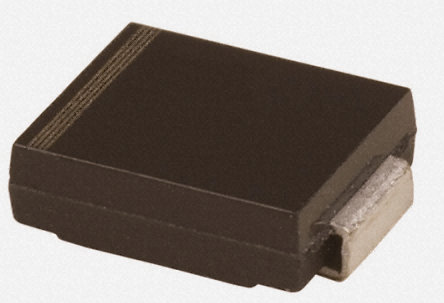

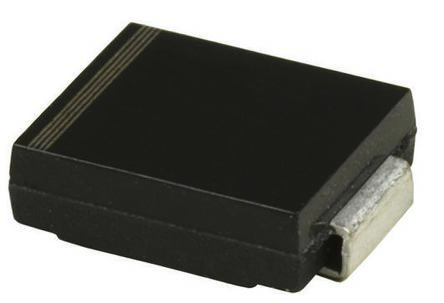

VS-30BQ015-M3/9AT

4A 至 9A，Vishay Semiconductor肖特基整流器是半导体二极管，具有极低的正向电压降和非常快的切换作用。 肖特基二极管的反向恢复时间非常快。 肖特基二极管适用于需要快速切换和低功耗的应用。### 肖特基整流器，Vishay Semiconductor

DESCRIPTION

The VS-30BQ015-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.

FEATURES

• Ultralow forward voltage drop

• Guard ring for enhanced ruggedness and long term reliability

• Halogen-free according to IEC 61249-2-21 definition

• 125 °C TJ operation VR < 5 V

• Optimized for OR-ing applications

• High frequency operation

• High purity, high temperature epoxy encapsulation for

enhanced mechanical strength and moisture resistance

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• Compliant to RoHS directive 2002/95/EC
