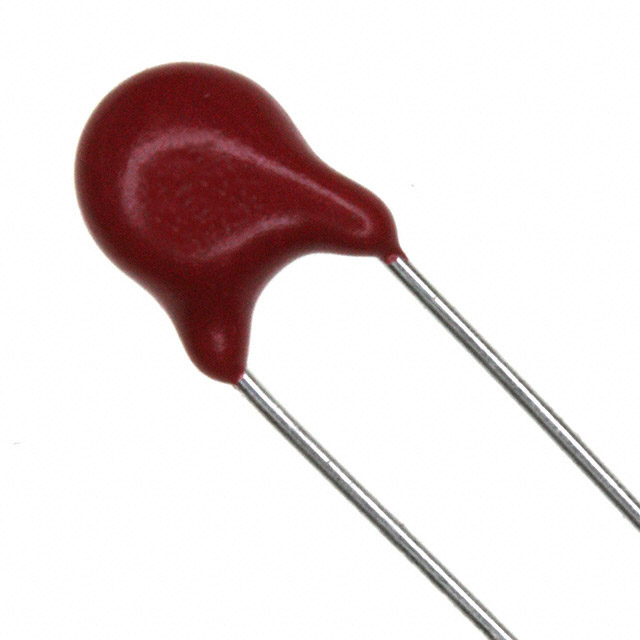

LITTELFUSE V47ZA05P TVS压敏电阻, MOV, ZA系列, 30 V, 38 V, 93 V, 片状 5mm, 金属氧化物压敏变阻器 MOV
Similar to a diode this MOV manufactured from is a nonlinear component. This device"s clamping current is 1 A and clamping voltage is 93 V. This part has a pitch of 6 mm. Its maximum surge current is 100 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device utilizes metal oxide technology. The maximum AC voltage rating is 30 VAC and the maximum DC voltage rating is 38 VDC. This varistor has a voltage of 55 V. Its capacitance value is 585pF. This product is 10 mm tall and 5 mm deep with a diameter of 7 mm.
额定电压DC 38 V
额定电压AC 30 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 400 pF
电路数 1
钳位电压 93 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 38 V
额定电压AC Max 30 V
安装方式 Through Hole
封装 Disc 5mm
宽度 5 mm
高度 10 mm
封装 Disc 5mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V47ZA05P Littelfuse 力特 | 当前型号 | 当前型号 |
V47ZA05 力特 | 完全替代 | V47ZA05P和V47ZA05的区别 |
V47ZU05P 力特 | 完全替代 | V47ZA05P和V47ZU05P的区别 |
MCV470K05DS Multicomp | 类似代替 | V47ZA05P和MCV470K05DS的区别 |
