VISHAY VS-8EWL06FN-M3 标准功率二极管, 单, 600 V, 8 A, 1.05 V, 100 ns, 140 A
The is an ultra-low VF Ultrafast Rectifier designed with optimized performance of forward voltage drop, Hyperfast recovery time and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in PFC boost stage in the AC/DC section of SMPS inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
- .
- Low leakage current
- .
- For PFC DCM operation
正向电压 1.05V @8A
反向恢复时间 100 ns
正向电流 8 A
最大正向浪涌电流（Ifsm） 140 A
正向电压Max 1.05 V
正向电流Max 8 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3

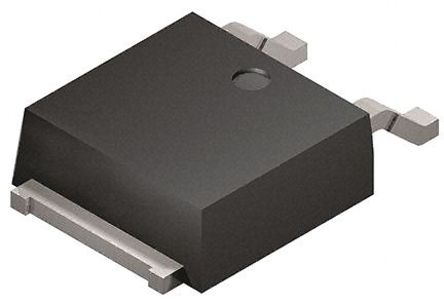

封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.39 mm
封装 TO-252-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 无铅
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-8EWL06FN-M3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-8EWL06FNTR-M3 威世 | 完全替代 | VS-8EWL06FN-M3和VS-8EWL06FNTR-M3的区别 |
VS-8EWL06FNTRL-M3 威世 | 功能相似 | VS-8EWL06FN-M3和VS-8EWL06FNTRL-M3的区别 |
VS-8EWL06FNTRR-M3 威世 | 功能相似 | VS-8EWL06FN-M3和VS-8EWL06FNTRR-M3的区别 |
