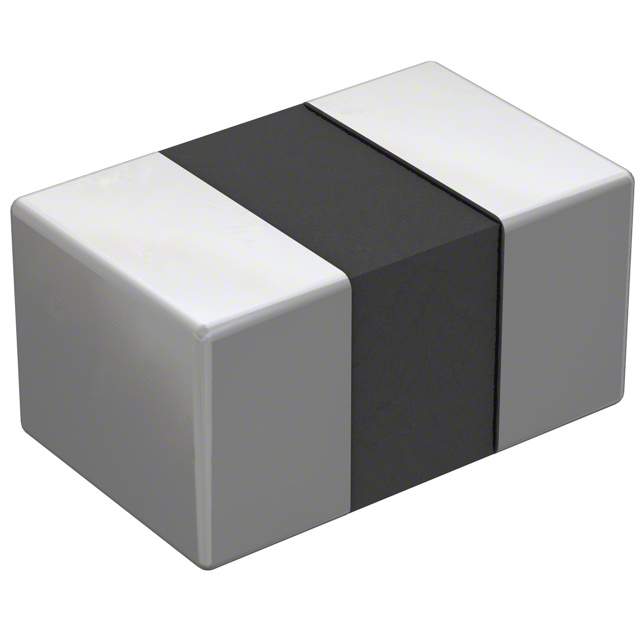

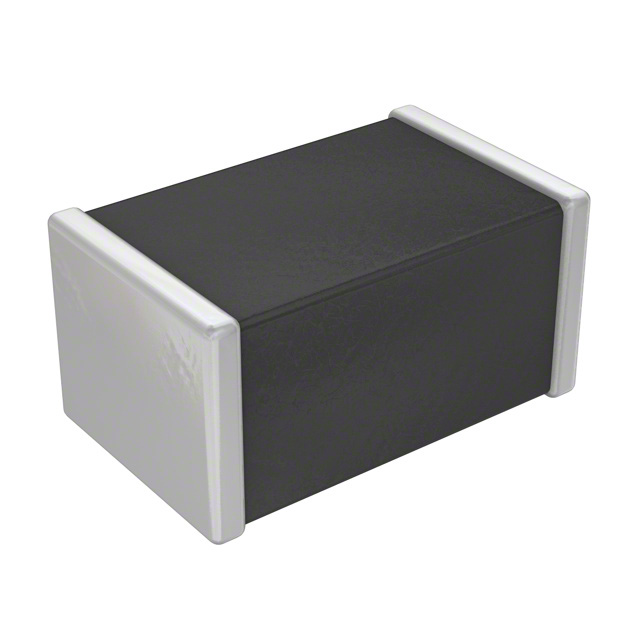

0805 18 Vac 26 Vdc 30 A 120 pF 表面贴装 压敏电阻 贴片
GENERAL DESCRIPTION
The TransGuard® Transient Voltage Suppressors TVS with unique high-energy multilayer construction represents state-of-the-art overvoltage circuit protection. Monolithic multilayer construction provides protection from voltage transients caused by ESD, lightning, NEMP, inductive switch ing, etc. True surface mount product is provided in EIA industry standard packages. Thru-hole components are supplied as conformally coated axial devices.
额定电压DC 26 V
额定电压AC 18 V
工作电压 26.0 V
电容 120 pF
电路数 1
钳位电压 60 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 26 V
额定电压AC Max 18 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.01 mm
宽度 1.25 mm
高度 1.02 mm
封装公制 2012
封装 0805
材质 Ceramic Multilayer
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
