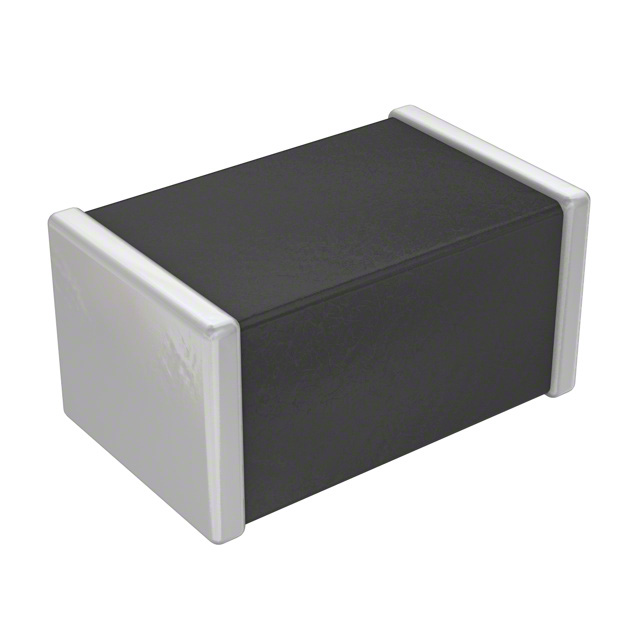

0805 封装 18 V SMD 多层 压敏电阻
Apply different voltages to this MOV from in order to change resistance of it. Its maximum surge current is 30 A. This device"s clamping current is 1 A and clamping voltage is 50 V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 14 VAC and the maximum DC voltage rating is 18 VDC. Its capacitance value is 80pF. This product is 2.01 mm long and 1.25 mm. This device is made with multilayer technology.
额定电压DC 18 V
额定电压AC 14 V
工作电压 18.0 V
额定电流 1 mA
电容 80 pF
电路数 1
钳位电压 50 V
额定电压DC Max 18 V
额定电压AC Max 14 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.01 mm
宽度 1.25 mm
高度 1.02 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VC08LC18A500RP AVX 艾维克斯 | 当前型号 | 当前型号 |
VC08LC18A500DP 艾维克斯 | 类似代替 | VC08LC18A500RP和VC08LC18A500DP的区别 |
