VISHAY VS-6TQ045SPBF 肖特基整流器, 单, 45 V, 6 A, TO-263, 2 引脚, 600 mV
The is a high performance Schottky Rectifier has been optimized for low reverse leakage at high temperature. The Q series Schottky rectifier proprietary barrier technology allows for reliable operation up to 175°C junction temperature. The Schottky rectifier features guard ring for enhanced ruggedness and long term reliability, high purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
针脚数 2
正向电压 600mV @6A
正向电流 6 A
最大正向浪涌电流(Ifsm) 690 A
正向电压Max 600 mV
正向电流Max 6 A
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2

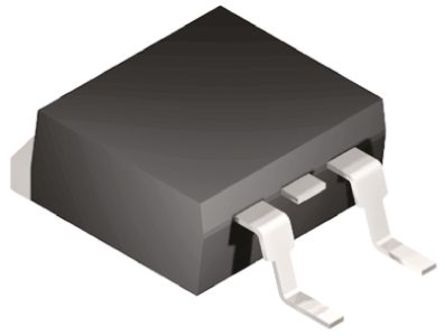

封装 TO-263-3
长度 10.67 mm
宽度 9.65 mm
高度 4.83 mm
封装 TO-263-3
工作温度 -55℃ ~ 175℃
产品生命周期 Discontinued at Digi-Key
包装方式 Each
制造应用 Power Management, Industrial, 电源管理, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-6TQ045SPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
6TQ045S 威世 | 类似代替 | VS-6TQ045SPBF和6TQ045S的区别 |
