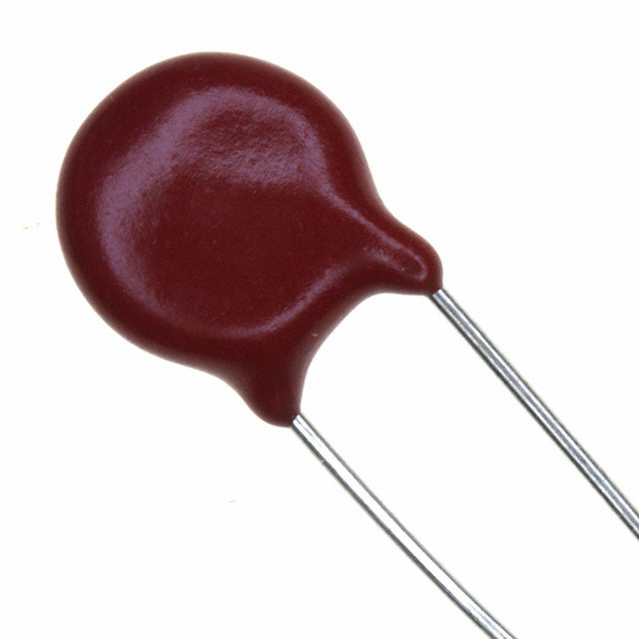

压敏电阻 175V 130pF
Similar to a diode this MOV manufactured from is a nonlinear component. This device"s clamping current is 10 A and clamping voltage is 455 V. This part has a pitch of 6 mm. Its maximum surge current is 1200 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This varistor has a voltage of 303 V. The maximum AC voltage rating is 175 VAC and the maximum DC voltage rating is 225 VDC. This product is 15 mm tall and 5.6 mm deep with a diameter of 9 mm. Its capacitance value is 130pF. This device utilizes metal oxide technology.
额定电压DC 225 V
额定电压AC 175 V
工作电压 303V max
电容 130 pF
电路数 1
钳位电压 455 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 225 V
额定电压AC Max 175 V
安装方式 Through Hole
封装 Disc 7mm
宽度 5.6 mm
高度 15 mm
封装 Disc 7mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V175LT2P Littelfuse 力特 | 当前型号 | 当前型号 |
V175LT2 力特 | 完全替代 | V175LT2P和V175LT2的区别 |
