V250LS4P

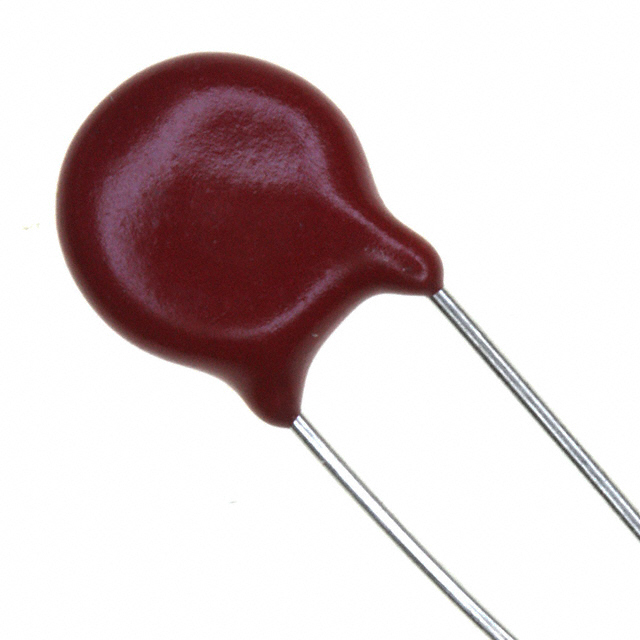

V250LS4P图片1
V250LS4P图片2
V250LS4P图片3
V250LS4P图片4
V250LS4P图片5
V250LS4P图片6
V250LS4P图片7
V250LS4P概述

LS 系列 330 VDC 250 V RMS 650 V 钳位 1200 A 90 pF 径向引线 压敏电阻

This MOV from is a nonlinear resistor, the resistance of it will change when different voltages are applied to it. This part has a pitch of 6 mm. Its maximum surge current is 1200 A. This device"s clamping current is 10 A and clamping voltage is 650 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This varistor has a voltage of 429 V. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 330 VDC. This device utilizes metal oxide technology. This product is 12 mm tall and 5.6 mm deep with a diameter of 9 mm. Its capacitance value is 90pF.

V250LS4P中文资料参数规格
技术参数

额定电压DC 330 V

额定电压AC 250 V

工作电压 429V max

额定电流 1 mA

绝缘电阻 1000 MΩ

电容 90 pF

电路数 1

钳位电压 650 V

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压DC Max 330 V

额定电压AC Max 250 V

封装参数

安装方式 Through Hole

封装 Disc 7mm

外形尺寸

宽度 5.6 mm

高度 12 mm

封装 Disc 7mm

物理参数

工作温度 -55℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买V250LS4P
型号: V250LS4P
描述:LS 系列 330 VDC 250 V RMS 650 V 钳位 1200 A 90 pF 径向引线 压敏电阻
替代型号V250LS4P
型号/品牌 代替类型 替代型号对比

V250LS4P

Littelfuse 力特

当前型号

当前型号

V250LC4P

力特

完全替代

V250LS4P和V250LC4P的区别

V250LS4

力特

完全替代

V250LS4P和V250LS4的区别

V250LT4P

力特

类似代替

V250LS4P和V250LT4P的区别
